Re: Lets see some engine pics

Post by 1SlowBu » Mon Jan 13, 2014 6:50 pm

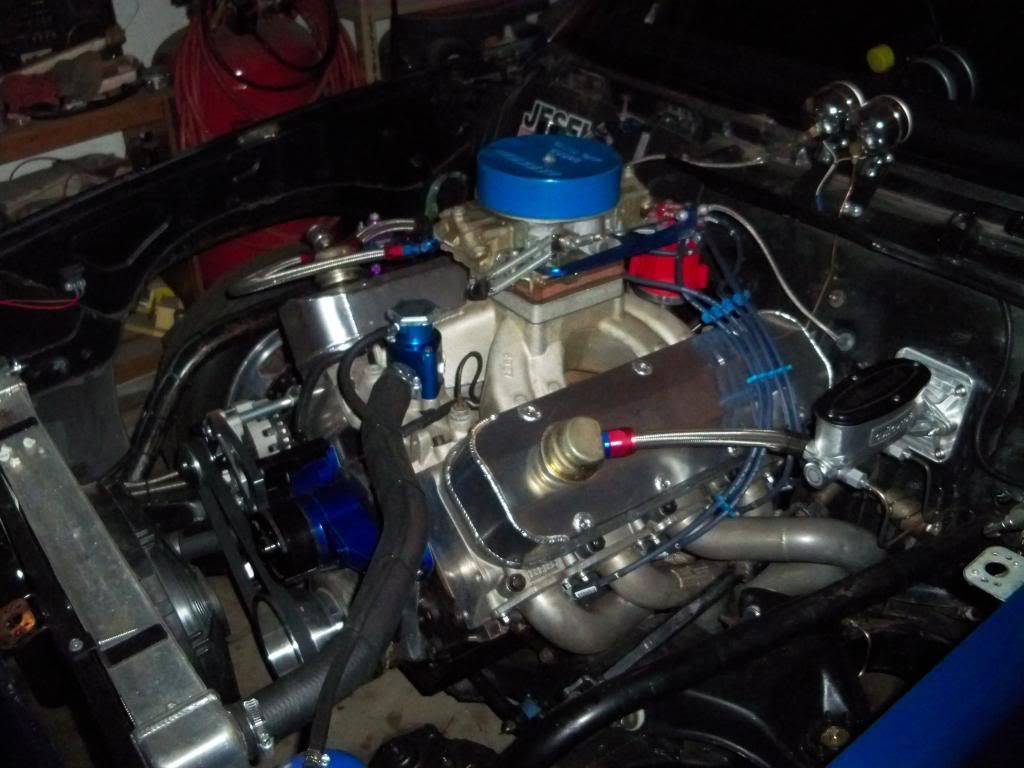

Here's my 511" BBC


User avatar
BENCHSEATRACIN
Frequent Racer
Posts: 467
Joined: Tue Jun 10, 2008 1:15 pm
Location: Bel Air,MD 21014

Re: Lets see some engine pics

Post by BENCHSEATRACIN » Mon Jan 13, 2014 9:15 pm

looks good!!!.....and powerful!
1SlowBu wrote:Here's my 511" BBC

PUMP GAS 498
http://www.BenchSeatRacin.com" onclick="window.open(this.href);return false;
Bel Air,MD 21014

Vsix
Dragway Regular
Posts: 1231
Joined: Thu Sep 30, 2004 12:08 am
Location: Hulmeville PA

Re: Lets see some engine pics

Post by Vsix » Tue Jan 14, 2014 8:24 pm

My 383 SBC

02 GMC 6.0 2500 HD
81 383 Malibu
72 468 Chevelle

User avatar
CruizinKev
Frequent Racer
Posts: 360
Joined: Tue Sep 11, 2007 11:13 am
Location: overseas in germany

Re: Lets see some engine pics

Post by CruizinKev » Tue Jan 14, 2014 11:48 pm

my 6.2 LS3 :mrgreen:



-Kevin-
1979 Chevrolet Monte Carlo Frame Off Resto LS3 6.2 T56 [SOLD]
1972 Buick GS 462 Stage 1

User avatar
Horsepwraddict
Pro Stocker
Posts: 1581
Joined: Sat Mar 03, 2007 12:42 pm
Location: Princeton MA

Re: Lets see some engine pics

Post by Horsepwraddict » Tue Mar 11, 2014 3:58 am

my carbed 5.3
Erik
1991 S10-Carbed 5.3, th350, 8.8 w/4.10's- 11.87 @ 114 -Blown up and parted out
2000 S10- 350, th350, 8.8 w/4.10s-Sold
1983 Regal- Ls swap in progress

"Its not leaking, its sweating horsepower"

User avatar
speedkills80
Amateur Racer
Posts: 270
Joined: Mon Jun 23, 2008 9:24 pm
Location: Omaha NE

Re: Lets see some engine pics

Post by speedkills80 » Fri Mar 21, 2014 7:43 pm

A couple new touches.




1980 Malibu Classic
A/C delete
402 BBC
M-21 4 speed

User avatar
Alex41
Weekend Racer
Posts: 84
Joined: Mon Nov 04, 2013 6:38 pm
Location: Fort Belvoir, VA

Re: Lets see some engine pics

Post by Alex41 » Fri Mar 21, 2014 11:56 pm

I really dig your car speedkills80. It has the look of the 60's Chevelle down to a "t".

User avatar
LS6 Tommy
MalibuRacing Junkie
Posts: 15847
Joined: Sat May 15, 2004 7:26 am
Location: North Jersey

Re: Lets see some engine pics

Post by LS6 Tommy » Mon Mar 24, 2014 6:35 pm

speedkills80 wrote:A couple new touches.





We're both thinking the same way. I'm doing mine with all GM parts to emulate what The General might have made if they still put an LS6 454 into a 1980 Malibu...

Great job so far!

Tommy
20k mile '80 Malibu, currently undergoing long term (aka no money) factory style install LS6 454, Cowl Induction, Legend LGT 700 5 speed. Full Global West suspension, 17" N90 wheels, 12" front/11" rear disc brakes, 9" 3.70 Auburn Pro posi.

"The older I get, the faster I was"

User avatar
speedkills80
Amateur Racer
Posts: 270
Joined: Mon Jun 23, 2008 9:24 pm
Location: Omaha NE

Re: Lets see some engine pics

Post by speedkills80 » Tue Mar 25, 2014 5:56 pm

Thanks Alex and Tommy!
1980 Malibu Classic
A/C delete
402 BBC
M-21 4 speed

bbaehr22x
Dragway Regular
Posts: 818
Joined: Mon Mar 21, 2005 1:36 am
Location: North Ridgeville, ohio

Re: Lets see some engine pics

Post by bbaehr22x » Sun Mar 30, 2014 8:12 am


User avatar
bigbadbu
Pro Stocker
Posts: 1580
Joined: Mon May 05, 2008 1:36 pm
Location: East Hartford
Contact:

Re: Lets see some engine pics

Post by bigbadbu » Thu Jun 12, 2014 11:14 am

my 454

79 malibu landau jackstand militia
454 elgin .519 lift cam, edelbrock performer holley 750dp th350

t01blaze
Amateur Racer
Posts: 247
Joined: Wed Dec 14, 2011 11:24 am
Location: South New Jersey

Re: Lets see some engine pics

Post by t01blaze » Sat Jun 14, 2014 5:25 pm

speedkills80 wrote:A couple new touches.


How is the clearance between the heater box and engine?
Which shifter and installation kit did you use for the M-21 swap?

I found a video of your can on youtube. Very nice. I'm having my car painted the same color.

User avatar
LS6 Tommy
MalibuRacing Junkie
Posts: 15847
Joined: Sat May 15, 2004 7:26 am
Location: North Jersey

Re: Lets see some engine pics

Post by LS6 Tommy » Sun Jun 15, 2014 8:32 am

t01blaze wrote:How is the clearance between the heater box and engine?

Which shifter and installation kit did you use for the M-21 swap?
X2. Please elaborate on the shifter. Did you use a factory floor hump & boot? My shifter is for a Second Gen A-body/First Gen F-body with console, so I'm pretty sure it won't line up right for a G-body hump.

Tommy
20k mile '80 Malibu, currently undergoing long term (aka no money) factory style install LS6 454, Cowl Induction, Legend LGT 700 5 speed. Full Global West suspension, 17" N90 wheels, 12" front/11" rear disc brakes, 9" 3.70 Auburn Pro posi.

"The older I get, the faster I was"

User avatar
speedkills80
Amateur Racer
Posts: 270
Joined: Mon Jun 23, 2008 9:24 pm
Location: Omaha NE

Re: Lets see some engine pics

Post by speedkills80 » Sun Jun 15, 2014 9:25 am

LS6 Tommy wrote:
t01blaze wrote:How is the clearance between the heater box and engine?

Which shifter and installation kit did you use for the M-21 swap?
X2. Please elaborate on the shifter. Did you use a factory floor hump & boot? My shifter is for a Second Gen A-body/First Gen F-body with console, so I'm pretty sure it won't line up right for a G-body hump.

Tommy
The clearance between the heater box and the engine is tight but nothing is close enough to rub. Just don't use the extra tall valve covers.

The shifter we used was one out of a 70's pick up. We went to the junk yard and cut out a good floor section (rust free), then came home and welded it to the floor, that was to cover up where the old shifter hole was ( we had already cut the new shifter hole out ). You will need to try and save your original shifter hump. We reused that. With the trans and shifter mounted, center your shifter hump in place and tack weld it down. Then just do what the factory did...weld around the hump and then coat it with some black sealer to keep any exhaust fumes from coming in.
As far as linkage...we used the linkage kit that matched the trans. So we got a linkage kit to fit a 1968 Muncie out of a chevelle.

I hope some of this helps!! :D

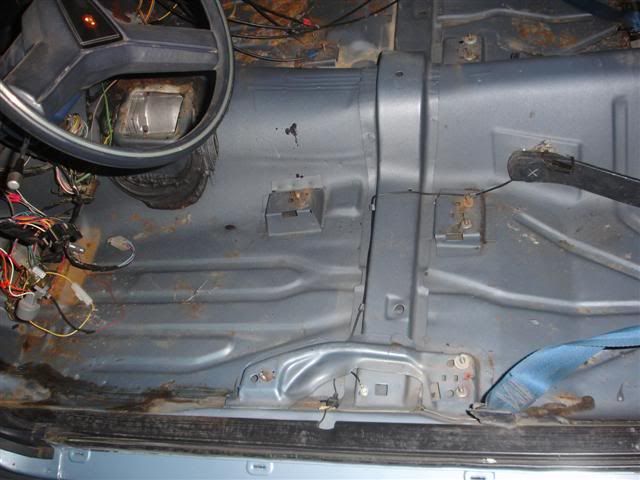

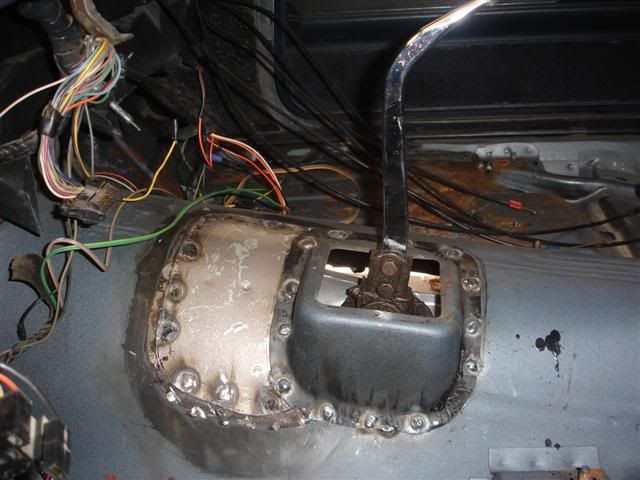

The first pic is where it was originally located the second pic shows how far back it moved due to changing from a Saginaw to a Muncie.


1980 Malibu Classic
A/C delete
402 BBC
M-21 4 speed

t01blaze
Amateur Racer
Posts: 247
Joined: Wed Dec 14, 2011 11:24 am
Location: South New Jersey

Re: Lets see some engine pics

Post by t01blaze » Sun Jun 15, 2014 3:24 pm

Thank you.

My car is out for paint and bodywork right now. It's going to be the light blue from an '81 Malibu. I also have plans for a big block/4 speed setup just like you did. I'm not building a race car or anything over the top, I want a fun street car that is reliable. I want to build it like yours, using GM parts and having it look like it came from the factory that way.
