GM AUTOMATIC TRANSMISSION ID

TURNA

Moderator
Jul 6, 2003
6,031
0
36
Socialist NY

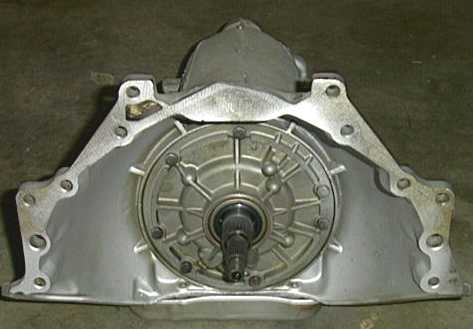

200r4 MULTIFIT BELLHOUSING (Fits Chevy & BOP)




BOP BELLHOUSING

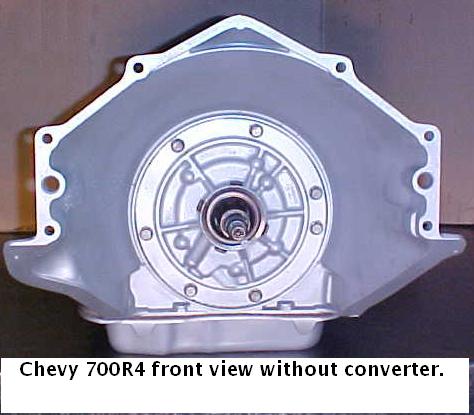

CHEVY BELLHOUSING



purecrazy

Weekend Racer
Jul 19, 2010
84
0
0
looking at the diagrams, would a 700r4 be a better fit to replace a th200 than a 200 4r? both need the wiring kit for the lockup, but the 700 looks like an easier mount physically in this diagram. Any one swapped either of these trannys in place of the 200?


TURNA

Moderator
Jul 6, 2003
6,031
0
36
Socialist NY
http://maliburacing.com/forum/viewtopic.php?f=7&t=104113


Factory xmember modified for a 700r4


purecrazy

Weekend Racer
Jul 19, 2010
84
0
0
thanks, turna!


axisg

Frequent Racer
May 13, 2008
407
0
0
YYZ ( Toronto )
purecrazy said:
looking at the diagrams, would a 700r4 be a better fit to replace a th200 than a 200 4r? both need the wiring kit for the lockup, but the 700 looks like an easier mount physically in this diagram. Any one swapped either of these trannys in place of the 200?
The 700r will require some fab work on your crossmember a driveshaft cut-n-balance. The 200r4 swap will require a stock crossmember from a 200r4 car and frame extension but you can re-use your driveshaft.


purecrazy

Weekend Racer
Jul 19, 2010
84
0
0
thanks! I think I'm going to go with the 2004r when I get a chance to find one and time to swap them out...great info on here
