How To: Landau to standard B-Pillar conversion with pics

Bill in NC

Top Fueler
Jan 1, 2004
2,723
0
0
Mocksville NC
OK guys I'm going to give this a shot, hopefully it will be helpful enough to get you started. Everyone does things different, this is how I did my conversion. It may take me a while to finish this :lol: , so bear with me.

I started out by getting all the parts I could think of before hand so I could do the swap quickly with no downtime. You will need to roundup;
-Standard windows - be sure to think about if you want factory tinted windows (A/C cars) or not.
-Inside upper and lower sail panels from a standard coupe - your b-pillar trim will work w/ both
-New window felts - you may need to trim the length slightly to fit your car exactly
-The black plastic trim that follows the roof/sail panel on the outside - standard is longer
-B-Pillar chrome trim - non Landau standard trim is thin and requires plastic clips to hold the trim to the b-pillar. Non Landau "Classic/Bright" trim is wide and wraps around the b-pillar post and attaches using the factory screws that hold the window roof seal retaining trim to the side of the b-pillar.
-3M windshield adhesive - I used one tube each side. A bit excessive, but there is no room for water to buildup and cause rust problems.

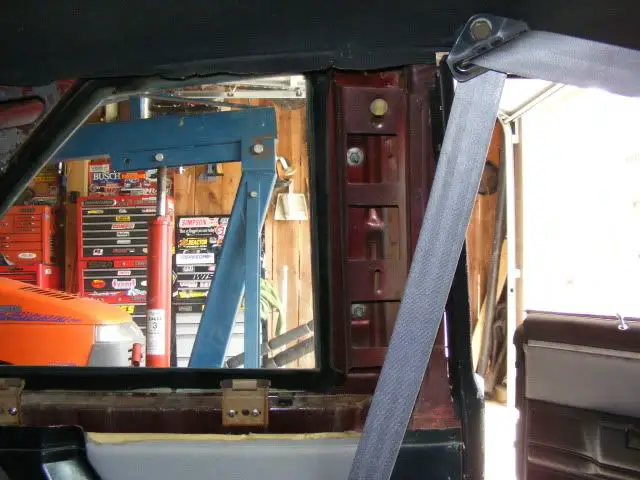

Here is the upper and lower sail panels removed. You can see the 2 nuts that secure the outer Landau trim to the car. Look very closely to the 2 lower sail panel attachment brackets. On the rear bracket you will see a pre-drilled hole less than 1/4" to the right and of the bracket (the other pre-drilled hole is behind the bracket in this picture). Looking at the foward lower bracket you will notice pre-drilled holes 2-3" foward of where the bracket is in its Landau sail panel position. During test fitting and final assembly, YOU WILL NEED TO MOVE THESE BRACKETS TO THE FOWARD PRE-DRILLED POSITIONS for the standard sail panels to fit CORRECTLY.

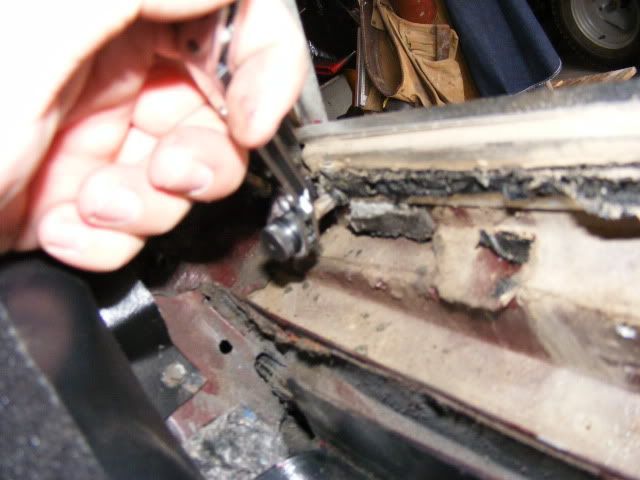

Remove the 4 brackets that help secure and set the window in the frame. 2 on the bottom, 1 on top, and 1 on the sail panel side.

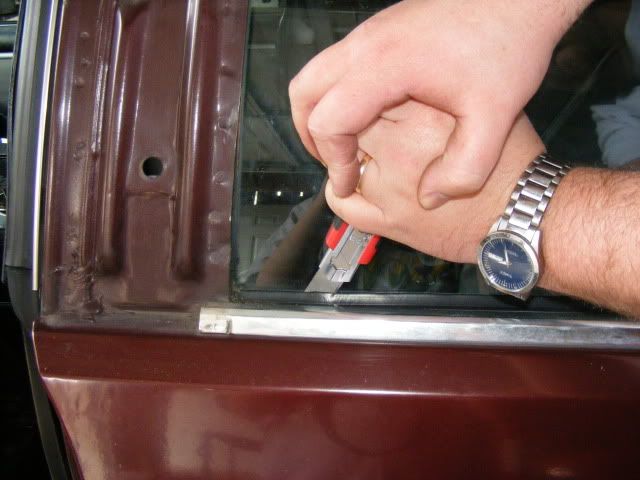

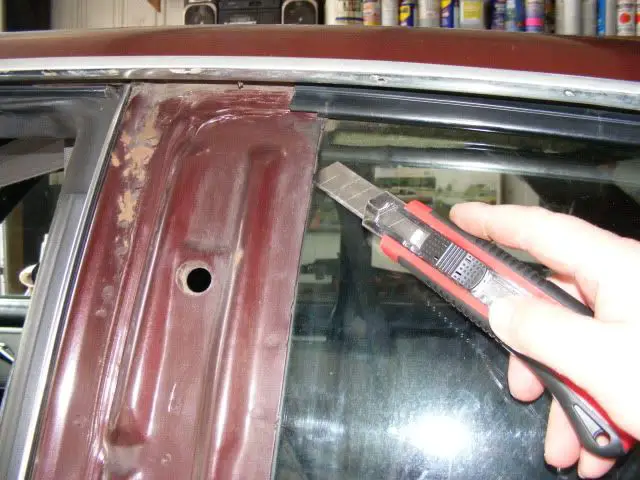

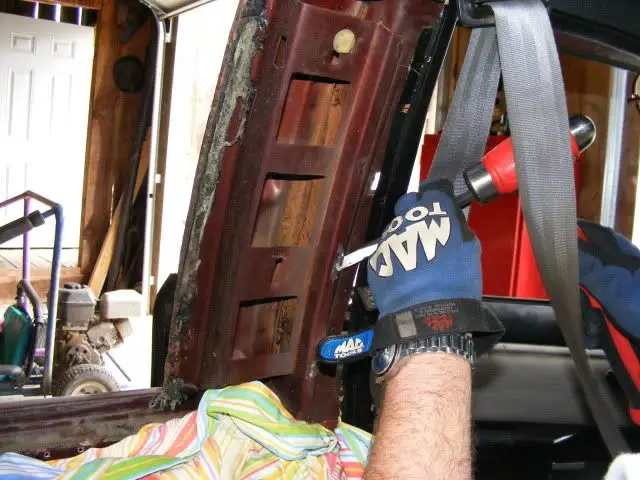

Remove the Landau trim. Cut the factory adhesive. I used a utility knife with the long flexible blades. You can cut a window out quick w/ one of these.

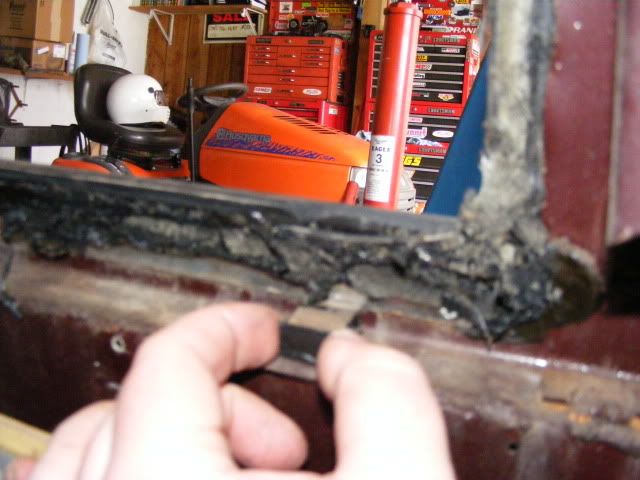

Locate and save these isolators. You will need them for the new quarter windows to sit on.

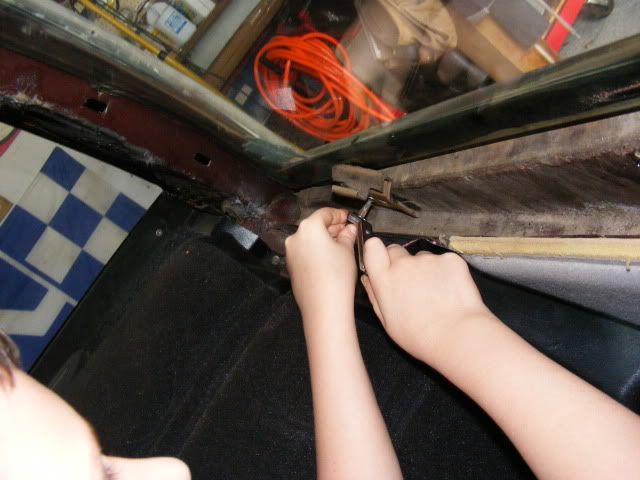

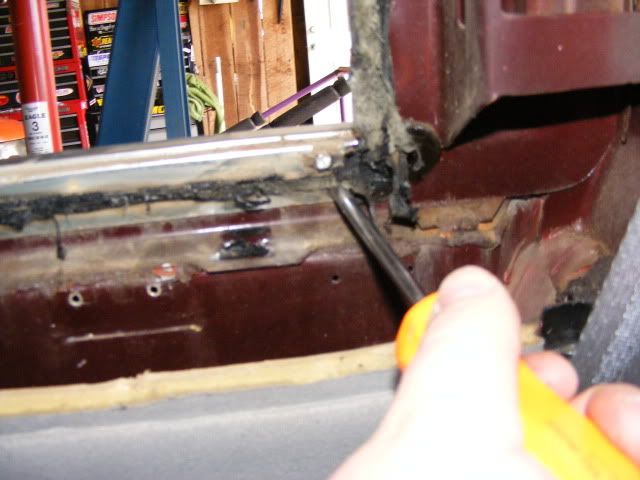

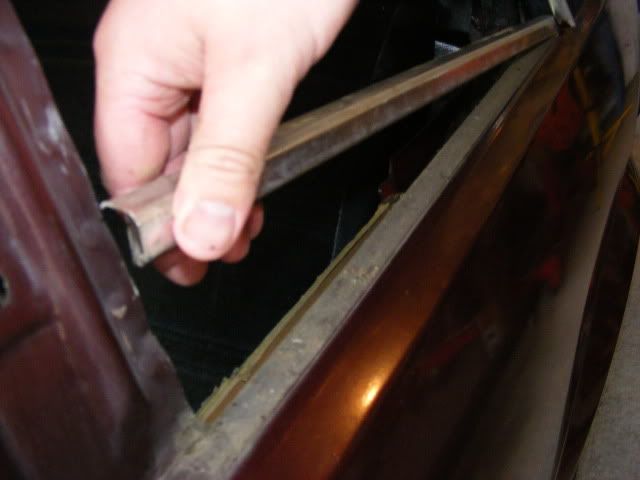

Locate and remove and save the screws securing the Landau window felt.

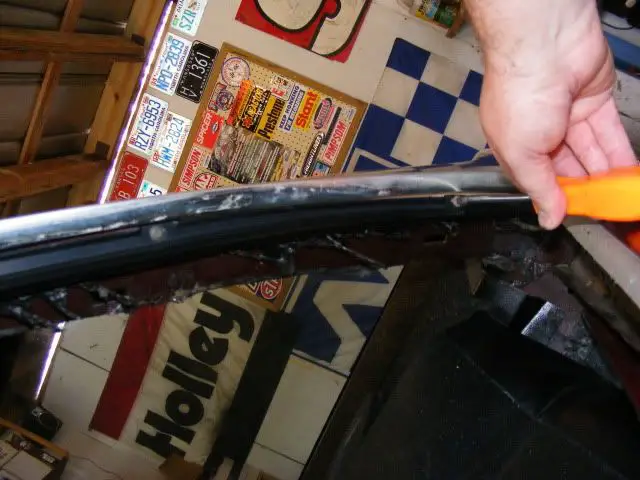

Remove the outside black plastic trim from the roof line/sail panel.

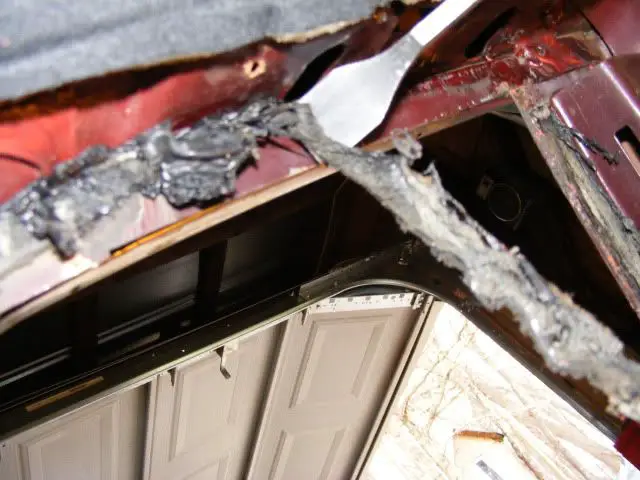

Remove and clean all the factory adhesive.

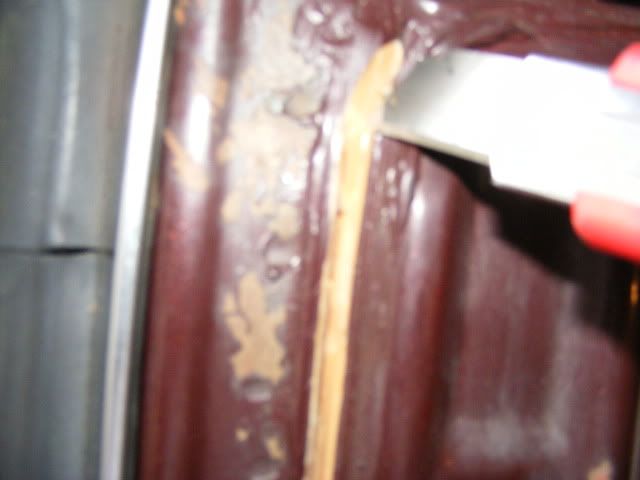

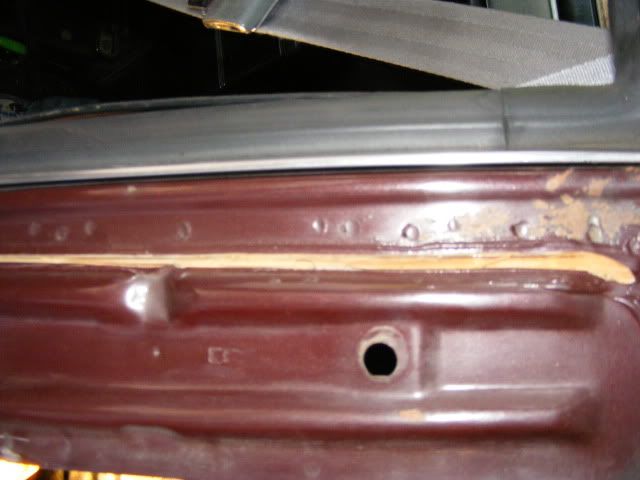

On the outside find the seam where the standard pillar is seam sealed to the Landau pillar. I used the same utility knife to cut out the seam sealer to leave a nice deep straight groove to cut and seperate the 2 pillars. Some say you can seperate the spot welds from the inside, but cutting from the outside seemed really easy and quick.

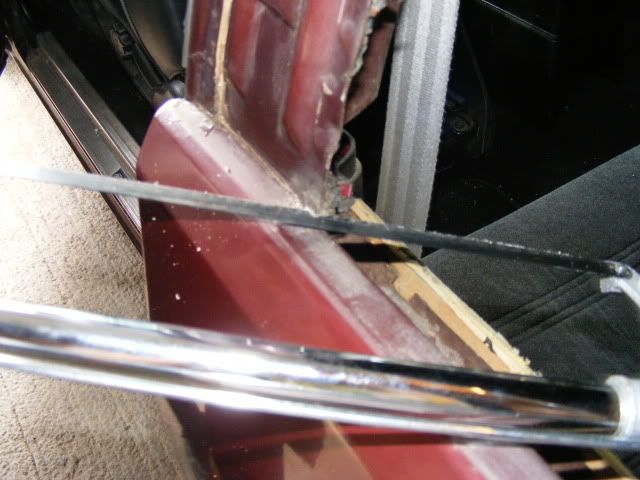

At the bottom rear of the Landau piller you will find a welded/braised area securing the pillar to the quarter, a few seconds with a hacksaw blade takes care of this

The top was secured with several spot welds, so I just went straight across the Landau pillar only

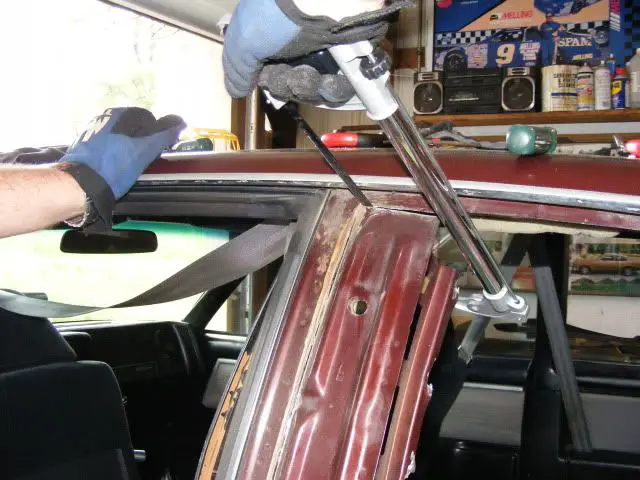

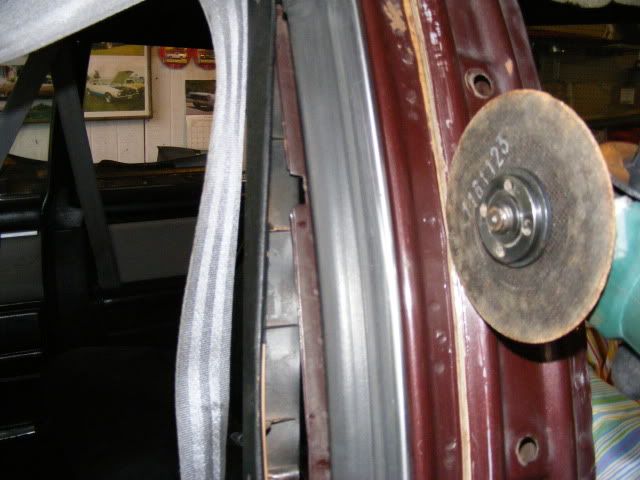

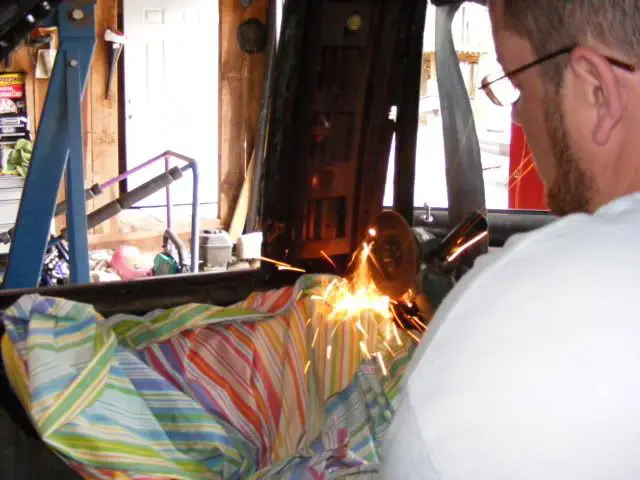

I used an angle grinder with a cutting disk for the cut to seperate the 2 pillars. Make sure you do whatever necessary to protect your interior when you start cutting.

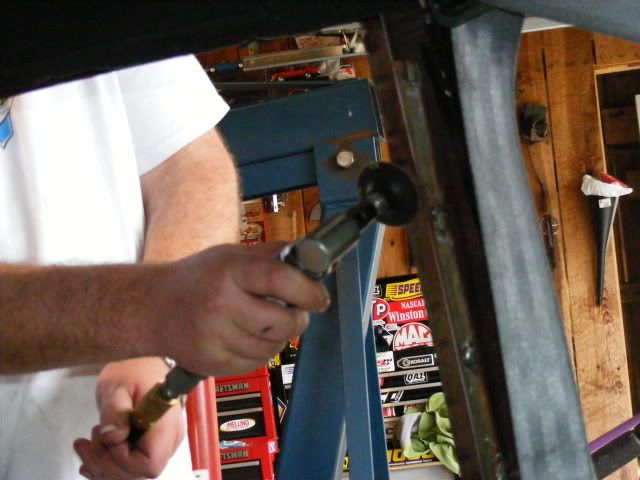

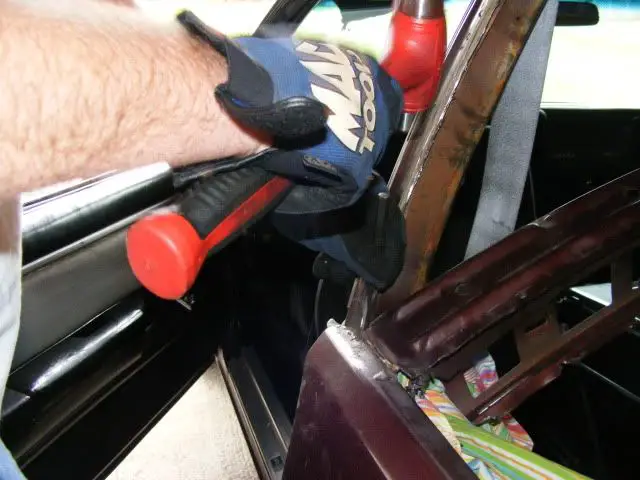

There are 3 or 4 spot welds in the inside. I sed a little grinder action and a few taps with the chisle
to get these loose


Ahhh, 1 more spot weld I had forgotten about....almost there

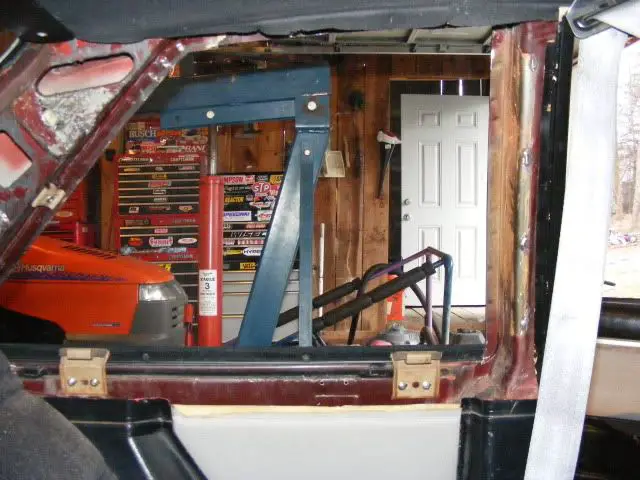

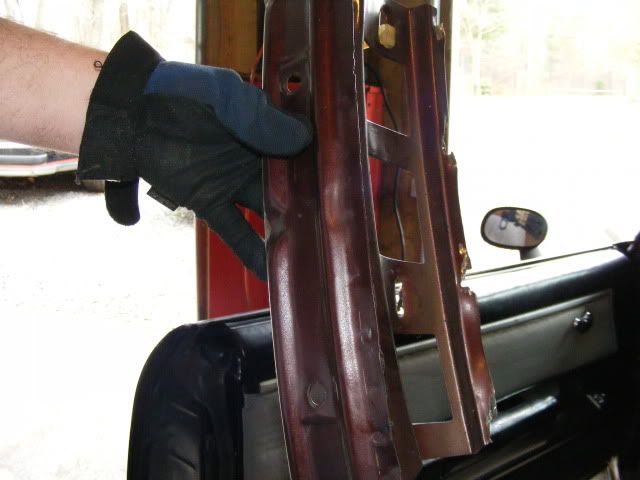

Boo-Yow! It's out

Clean up all those sharp edges and I recommend using your new glass as a template to straighten your window opening lip. GM did not care how warped the lip was while spot welding robots twisted the frames all up. The adhesive and window felts took up the slack so that you would probably never notice.

Use your new window to do as many test fits as necessary. The new window felt is in place in the photo. Also notice the "new" lower sail panel attachment bracket location in the foward pre-drilled holes. We reuse the rubber isolators that the window will rest on and window felt screws.

Now take it back apart and do any rust repair, body work, or painting needed.
I am missing several pictures of using the adhesive to set the windows, so I'll move on to some of the differences between all the standard and Landau parts.

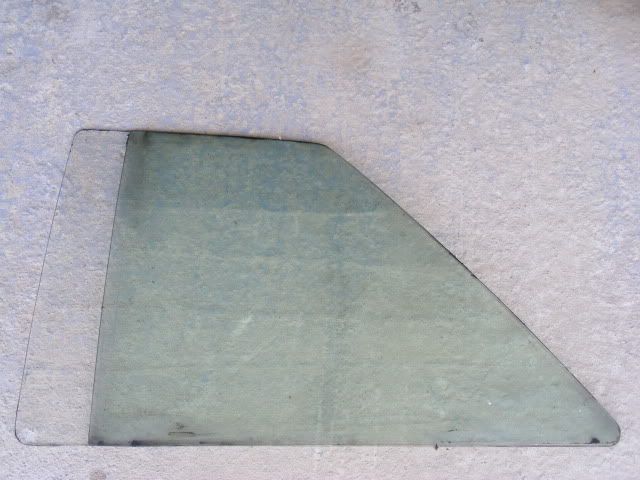

Here we have the windows. The standard window is longer that the Landau window. You can also see why I told you to think about what windows you want to source (A/C or non-A/C)

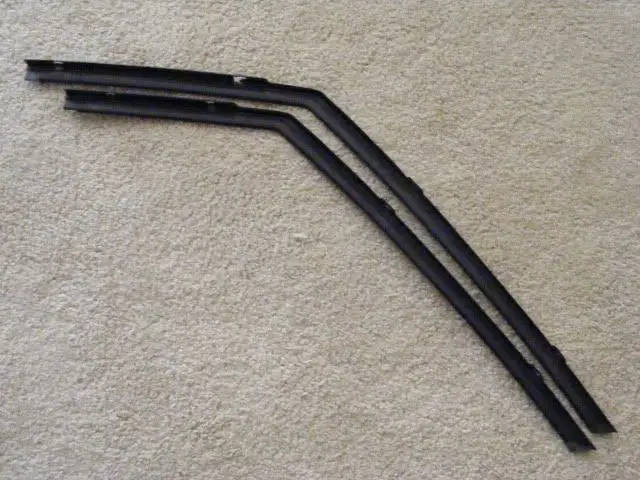

The black plastic trim that runs down the roof rail and sail panel. The standard is longer than the Landau. These are the pieces that nobody tells you about needing :lol:

Here is a sideways picture of the standard b-pillar trim that needs the plastic reatining clips installed to use this trim. You will need to find a body shop that has a stud weld gun that can do the style you need for the clips or you can use short screws to attach the plastic clips to your b-pillar.

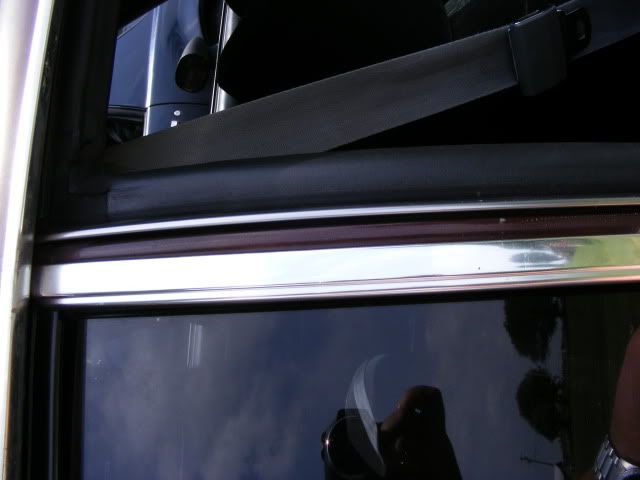

But I would highly recommend this route. The standard window Classic (Bright trimwork) b-pillar trim. It simply wraps around the entire outside b-pillar and uses the factory holes and screws that secure the window roof rail weather strip reatining trim. Takes like 30 seconds to install.


I hope this helps some of you guys out there. All of the parts that I needed for this swap, I bought from members on this site. Thanks again to all the members that sold me the parts to do it.




SLICK78

Dragway Regular
Aug 1, 2009
1,120
0
0
La Porte, Tx
Re: B-Pillar conversion, Landau to standard pics

man this is awesome thanks for posting it up!


appsk8r

Frequent Racer
Sep 7, 2006
429
0
0
Winston Salem, NC
Re: B-Pillar conversion, Landau to standard pics

wow I didn't realize it took all that work. If you never told me it was a conversion I never would have been able to tell. This is a great how-to, and I've seen it up close and compared it to my original Classic B-pillar and yours looks factory. Nice job.


80Grand_LeMans

Dragway Regular
Jun 4, 2008
1,249
0
0
Peabody MA
Re: B-Pillar conversion, Landau to standard pics

That came out really nice. I would be scared to do that, lol.


nillabu

Dragway Regular
May 16, 2008
778
0
16
St. Cloud, Minnesota
Re: B-Pillar conversion, Landau to standard pics

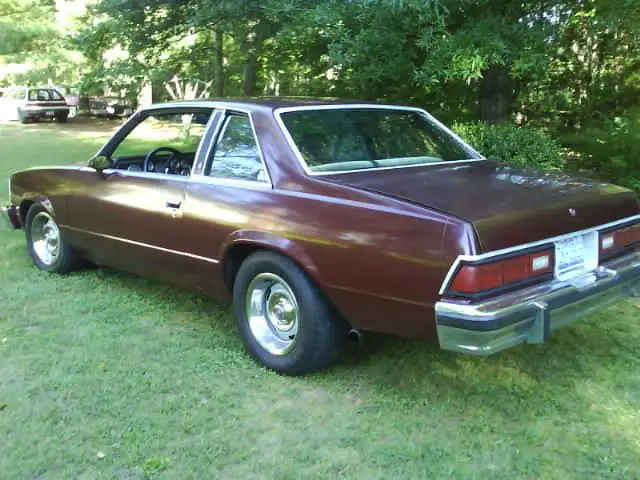

Great job Bill putting that together! It's a challenge but well worth the finished conversion. Great looking Malibu!!

Steve


Bill in NC

Top Fueler
Jan 1, 2004
2,723
0
0
Mocksville NC
Re: B-Pillar conversion, Landau to standard pics

Thanks everybody! The pictures make it look way more complicated than it is. If you have everything to do it there, and have no rust issues (lucky me), you could do the swap easily in a day. After the adhesive cures for a day or so, you can easily cut off any excess that may have squeezed out and install the outside trim. Way easier than cleaning off the adhesive while it's still wet. That stuff gets everywhere quick and takes forever to get off your hands.

appsk8r, tell the wife I said thanks again for the tip on the Classic b-pillar trim. She was the one who recommended them and remembered how it wrapped around the pillars on your car.


SLICK78

Dragway Regular
Aug 1, 2009
1,120
0
0
La Porte, Tx
Re: B-Pillar conversion, Landau to standard pics

h3ll yea thats cool my wife wouldnt notice that I did this conversion if I didnt tell her EVER lol


appsk8r

Frequent Racer
Sep 7, 2006
429
0
0
Winston Salem, NC
Re: How To: Landau to standard B-Pillar conversion with pic

lol, I didn't know she noticed. She acts like she doesn't know anything about cars sometimes, but she knows more than I give her credit for.


MALObu

Amateur Racer
Aug 27, 2010
233
0
0
los angeles,ca
Re: How To: Landau to standard B-Pillar conversion with pic

man please tell me you kept all the old landau parts?! im gonna be fabing some t-tops into a 79 malibu,and in order to do this i need the landau parts,being that i cant do it on a regular malibu(need the extra space in the pillars) if you have the parts how much would you be asking?


Bill in NC

Top Fueler
Jan 1, 2004
2,723
0
0
Mocksville NC
Re: How To: Landau to standard B-Pillar conversion with pic

The only parts that I have left from this swap are the lower sail panels and the outside wide Landau chrome b-pillar trim. Everything else was damaged during removal.


SLICK78

Dragway Regular
Aug 1, 2009
1,120
0
0
La Porte, Tx
Re: How To: Landau to standard B-Pillar conversion with pic

MALObu said:
damit!!! gota find me a landau 8-[ thanks.
send me your non landau parts and I will send you my landau parts :D


Brown_Gbody

Top Fueler
Feb 17, 2010
3,078
0
0
Milwaukee, WI
Re: How To: Landau to standard B-Pillar conversion with pic

Nice write up... very informative.


79lowrider

Daily Driver
Oct 1, 2010
25
0
0
Re: How To: Landau to standard B-Pillar conversion with pic

That was cool man! Now I have something to go by when I change my pillars. Thanks!


HOLY TERROR-BU

Top Fueler
Sep 14, 2010
2,503
0
0
WATERBURY, CT
Re: How To: Landau to standard B-Pillar conversion with pic

NICE JOB MAN....IT LOOKS LIKE A FACTORY ORIGINAL! 2 THUMBS UP!!


Bill in NC

Top Fueler
Jan 1, 2004
2,723
0
0
Mocksville NC
Re: How To: Landau to standard B-Pillar conversion with pic

Thanks man!


skostur79

Amateur Racer
May 22, 2006
137
0
0
ne ohio
Re: How To: Landau to standard B-Pillar conversion with pic

i almost sh*t my pants when i saw a 2dr standard at the pullapart today,
when back home to get more tools ,
i got every thing and a back glass too


thanks for the write up , too


j&amotorsports

Amateur Racer
Apr 11, 2008
120
0
0
laurel springs nj
Re: How To: Landau to standard B-Pillar conversion with pic

I did mine over the winter it took about 8-9 hrs. Very happy with the turn out. thanks John
