Frame Dimension Diagrams

MalibuRacing

Top Fueler
May 5, 2003
3,469
0
0
www.maliburacing.com

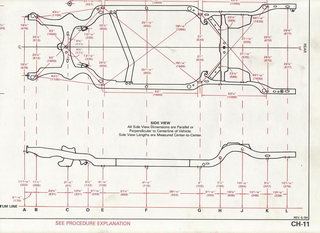

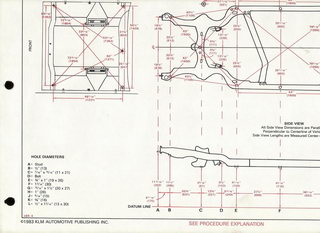

Detailed dimension drawings of Malibu frame.



Click image for larger view or right-click and "save as"



Click image for larger view or right-click and "save as"
