Manual & Automatic gear ratios & other trans. info

Doober

Moderator
Jun 2, 2003
14,704
1
38
Catalina, AZ
www.cardomain.com
Sticky?

I would imagine some of the T-10s/T-16s were in Ford or Chrysler vehicles, don't quote me.

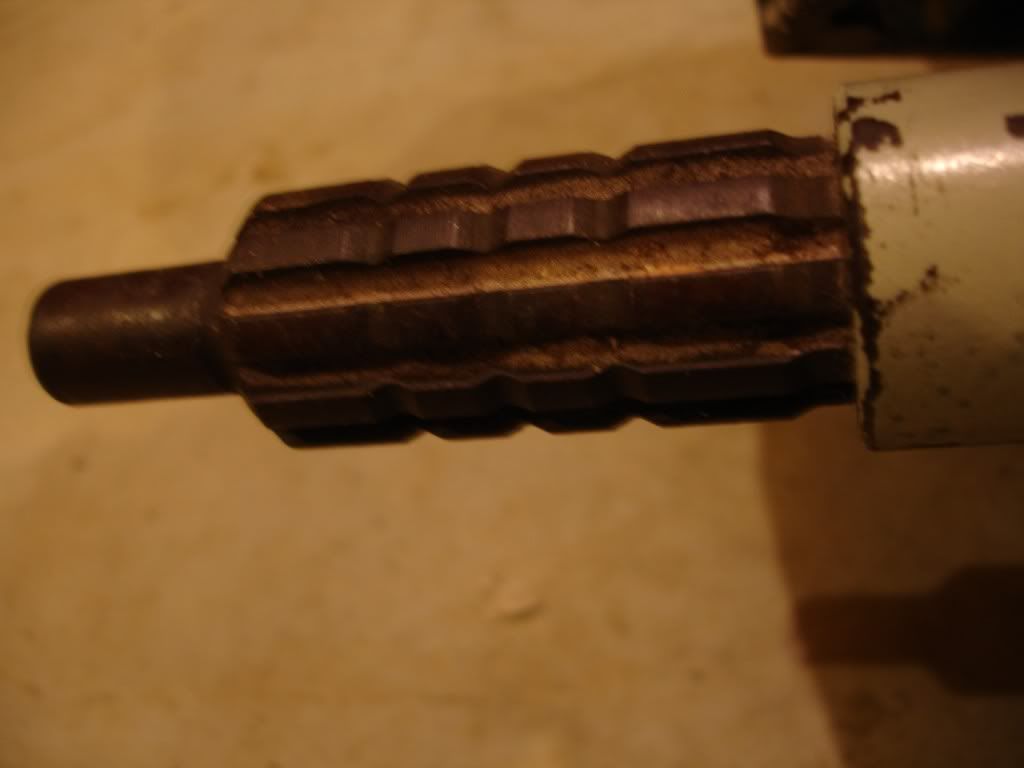

The rings mentioned that are on the input shaft run perpendicular to the splines, around shaft, seen here:


http://www.auto-ware.com/techref/transratios.htm
Code:
MANUALS
Ways to i.d. what ratios the trans has:
Saginaw 4 Speed:
All cast iron, No separator plate between front case and tail housing. All shift levers (3) in the side cover.
7 bolt side cover. Lowest rotational weight.

No lines on the input shaft  1st-2.84   2nd-2.01  3rd-1.35  4th-1.00
1 line on the input shaft    1st-2.54   2nd-1.80  3rd-1.44  4th-1.00
2 lines on the input shaft   1st-3.11   2nd-2.20  3rd-1.47  4th-1.00
3 lines on the input shaft   1st-3.50   2nd-2.47  3rd-1.65  4th-1.00


Saginaw 3 Speed:
All cast iron, No separator plate between front case and tail housing. 7 bolt side cover. Lowest rotational weight.

No lines on the input shaft  1st-2.85   2nd-1.68  3rd-1.00
1 line on the input shaft    1st-2.51   2nd-1.50  3rd-1.00
2 lines on the input shaft   1st-3.11   2nd-1.84  3rd-1.00
3 lines on the input shaft   1st-3.50   2nd-1.89  3rd-1.00

Muncie 4 Speed:
All aluminum, 7 bolt side cover.
Casting numbers may end  with 336, 010, 660, or 661

No lines on the input shaft- Early Wide Ratio   1st-2.56  2nd-1.91  3rd-1.48 4th-1.00
OR M-22 with same ratios as below
1 line on the input shaft-Close Ratio           1st-2.20  2nd-1.64  3rd-128  4th-1.00
2 lines on the input shaft-Late Wide Ratio      1st-2.54  2nd-1.88  3rd-1.46 4th-1.00

Second Design Borg-Warner Super T-10:
9 Bolt side cover. May be all aluminum, all cast iron, or half and half
2 lines on the input shaft  1st-2.43   2nd-1.61  3rd-1.23 4th-1.00
3 lines on the input shaft  1st-2.64   2nd-1.75  3rd-1.33 4th-1.00
5 lines on the input shaft  1st-3.42   2nd-2.28  3rd-1.46 4th-1.00
6 lines on the input shaft  1st-2.88   2nd-1.91  3rd-1.33 4th-1.00

Trans            1st    2nd    3rd    4th

Warner T-16	   2.41	1.57	1.00	--
Warner T-16	   2.86	1.71	1.00	--
Warner T-10	   2.54	1.92	1.51	1.00
Warner T-10	   2.10	1.64	1.31	1.00
Warner T-10	   2.54	1.89	1.51	1.00
Warner T-10	   2.36	1.78	1.41	1.00
Warner T-10	   2.36	1.76	1.41	1.00
Warner T-10	   2.73	2.04	1.50	1.00
Warner T-10	   2.36	1.62	1.20	1.00
B-W Super T-10	2.64	1.61	1.23	1.00
B-W Super T-10	2.64	1.75	1.33	1.00
B-W Super T-10	2.88	1.74	1.33	1.00
B-W Super T-10	3.44	2.28	1.46	1.00
B-W Super T-10	2.23	1.77	1.35	1.00
B-W Super T-10	2.43	1.61	1.23	1.00
B-W Super T-10	2.43	1.76	1.47	1.00
B-W Super T-10	2.64	2.10	1.60	1.00
B-W Super T-10	2.64	2.10	1.46	1.00

http://www.smokemup.com/tech/700r4.php
Code:
AUTOMATICS
Trans            1st    2nd    3rd    4th

Turbo 350  	   2.52	1.52	1.00	--
Turbo 400 	    2.48	1.48	1.00	--
700R4/4L60/E	  3.06	1.63	1.00	0.70
2004R            2.74   1.57   1.00   0.67
4L80E 	        2.48	1.48	1.00	0.75
Power Glide      1.76   1.00	--	  --
                 1.82   1.00	--	  --
The 1.76 has a 12 7/8" long input shaft and a cast steel carrier.
The 1.82 has a 12 5/8" long input shaft and a stamped steel carrier.


DOUG213XRJ

MalibuRacing Junkie
Sep 18, 2006
4,669
1
38
West, MI
Re: Manual & Automatic gear ratios

Thanks doober. I didnt need them but ill write them down anyway.


LS6 Tommy

MalibuRacing Junkie
May 15, 2004
15,847
1
38
North Jersey
Re: Manual & Automatic gear ratios

IIRC, a teeny bit of the Muncie info is erratic. There never was a 2.54 1st gear. Only 2.20, 2.52 & 2.56.

Also, just an FYI-a fine spline input shaft doesn't indicate M22, nor does a fill plug on the case. 67-70 M22 were 10 spline input. 70-74 were 26 spline, so a no-ring input shaft with 10 splines can be an M20, so be careful when you try to ID M22s. The sure way is to count input shaft rings & gear teeth. If it doesn't have rings, but doesn't have 26 teeth, it's not an M22. M20's have 21 or 24.

Tommy


racecar77

Pro Stocker
Aug 11, 2007
2,438
0
0
Crete,IL
Re: Manual & Automatic gear ratios

To add to Tommy's post. The angle of the cut on the gears is different on the M-22, resulting in the distinct sound difference of a Rockcrusher.


tiedyemike8

Frequent Racer
Oct 28, 2009
658
0
0
Naperville, IL
Good info. Thanks Doober.
