Post your anti roll bar pics!

monte carlo 572

Daily Driver
Jun 29, 2009
12
0
0
pgh pa.
Hi, I;am about to install anti roll bar in my , i need to know where to put the tab on the rear? Do you put them on the back of the rear, on top in , :D the front. A little in site would help a lot.

thanks tom


malibuj

Dragway Regular
May 6, 2007
1,074
0
0
Lancaster PA
Re: anti roll bar

Its really whatever works best for you...

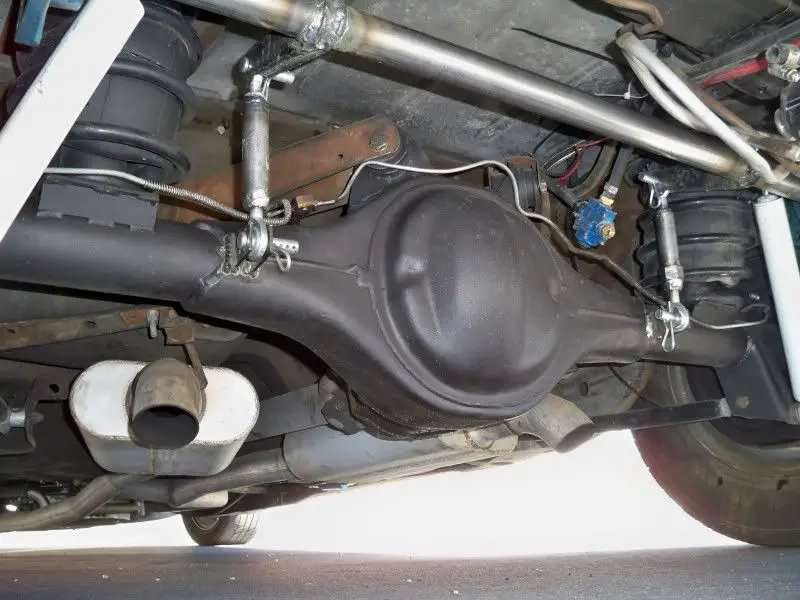

I have mine on the back side of the rear....
I will try to post up some pics by the weekend....

Im sure others will chime in too.......


5-door

MalibuRacing Junkie
Mar 23, 2004
3,845
0
0
Cottage Grove, MN
www.jtraceshop.com
Re: anti roll bar

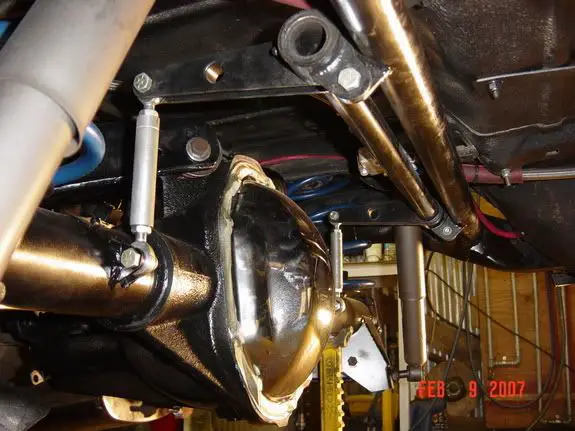

Placement of the tabs on the housing isn't critical. You can put them wherever they need to be. You just wanna make sure they land directly under the arms. A good way to figure out if they should be on the front, top, or back of the housing is to just put them wherever they make the vertical link bars vertical. You don't really want the vertical links leaning to the front or back, try to get them perfectly vertical. Wherever they end up vertical is where you should put your tabs on the housing.


SURESHOT

MalibuRacing Junkie
Mar 29, 2008
5,121
0
0
LONG ISALND NEW YORK
Re: anti roll bar

DO YOU STILL USE A REAR SWAY BAR WITH THE USE OF AN ARB ?


malibuj

Dragway Regular
May 6, 2007
1,074
0
0
Lancaster PA
Re: anti roll bar

Not saying its right,,,
But I don't....
What are some of you other guys doing????


Supe

MalibuRacing Junkie
May 21, 2003
15,116
0
0
Charlotte, NC

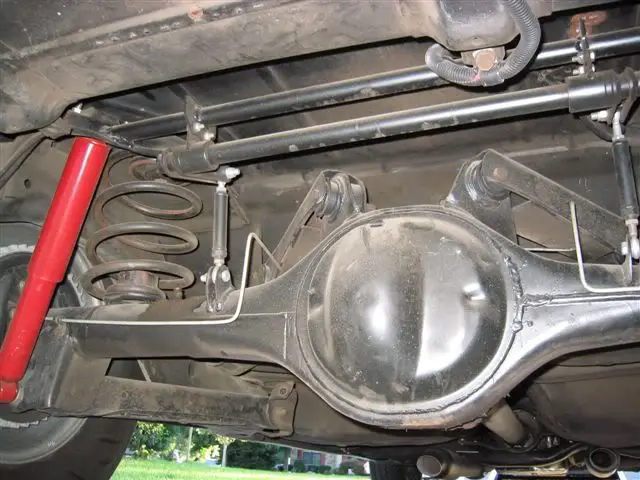

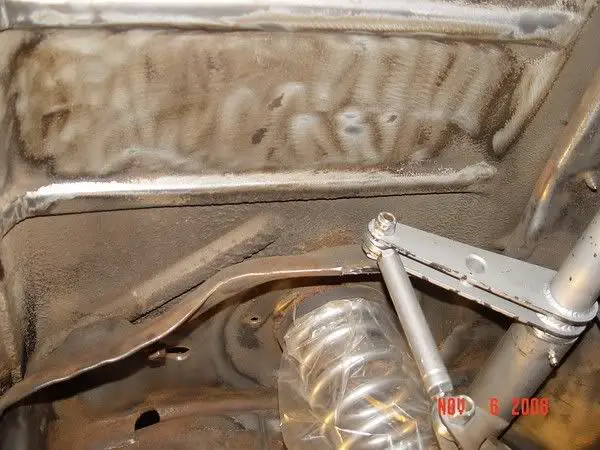

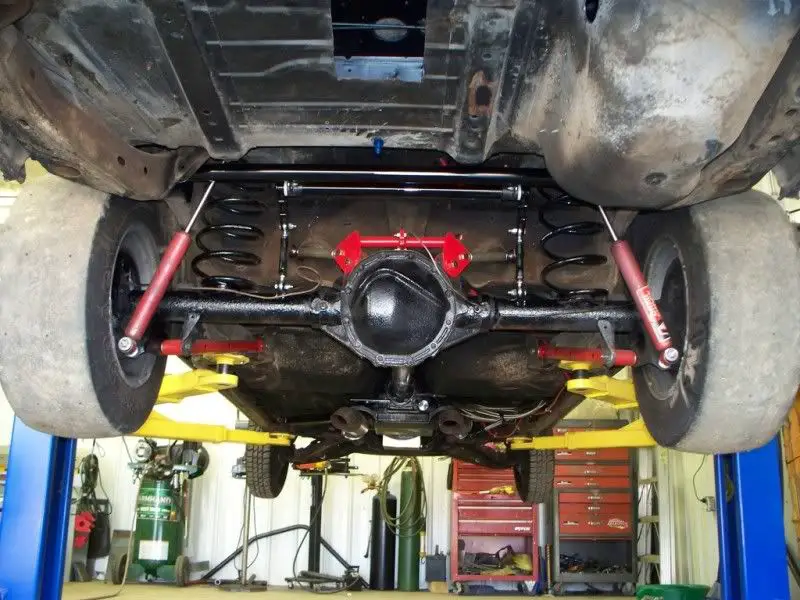

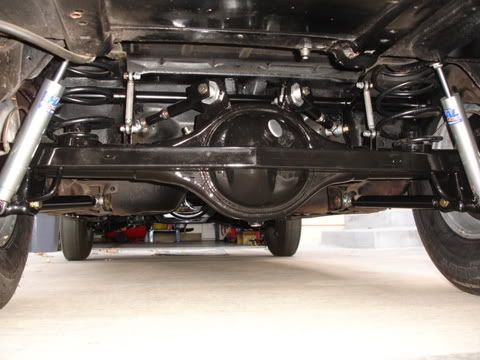

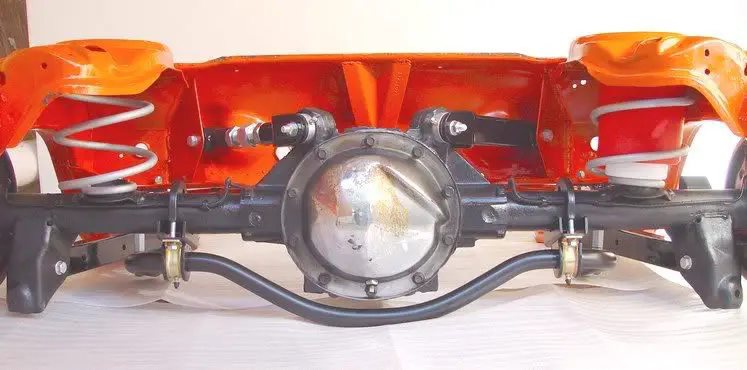

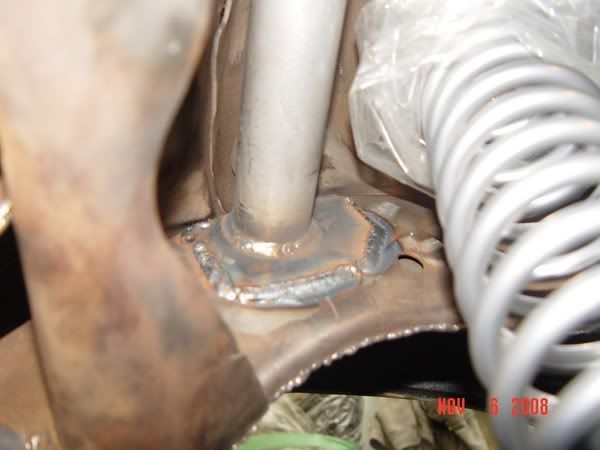

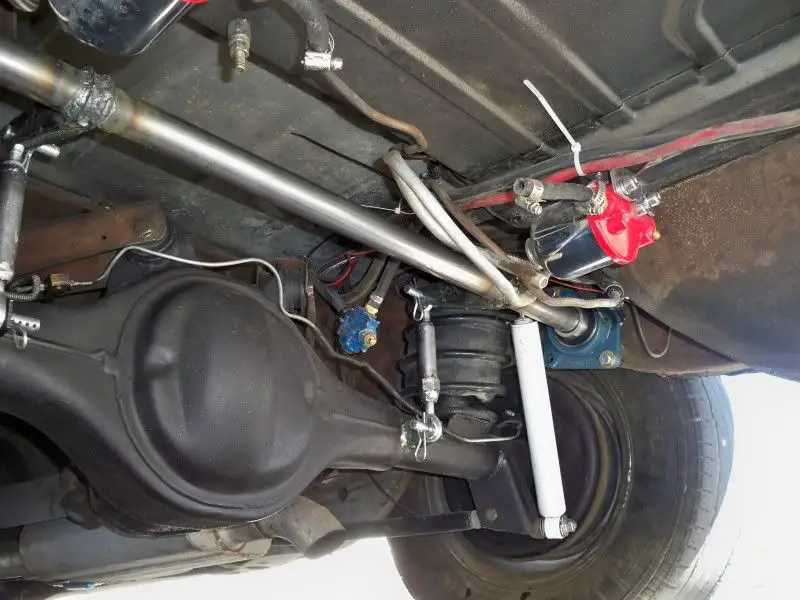

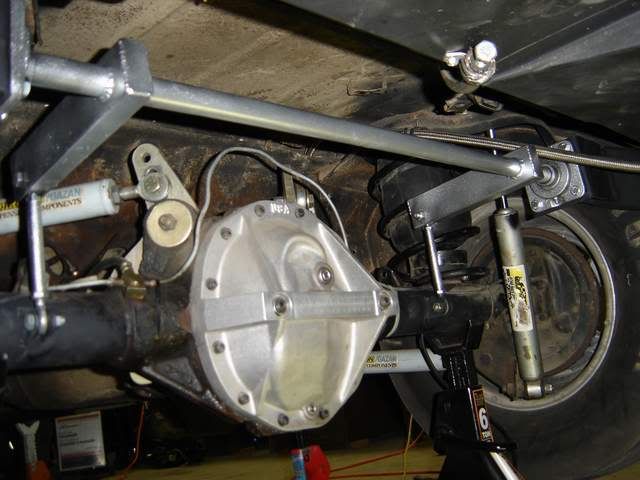

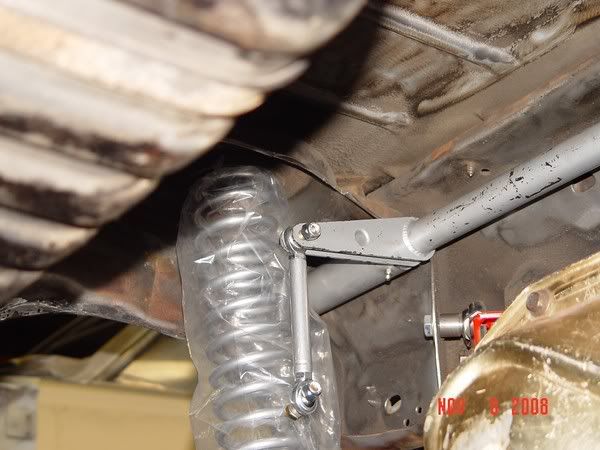

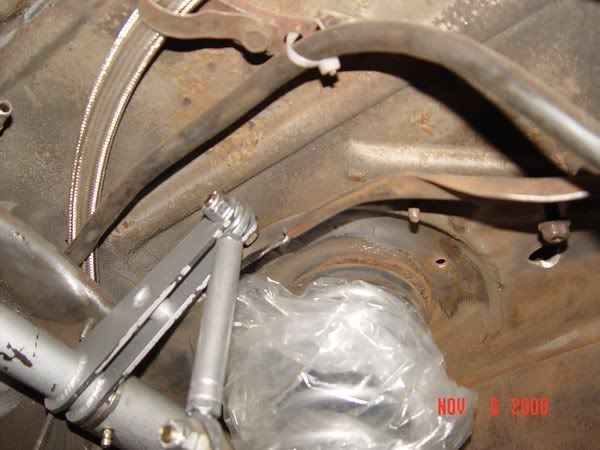

This topic seems to be coming up more and more, so I've moved this thread to the Suspension forum and made it a sticky. Post up your anti roll bar pics!


Chief11885

Amateur Racer
Jun 17, 2006
144
0
0
Kansas
so how hard is it to install one and how makes the best one. I was thinking of a sway bar but this might be better yet.


SURESHOT

MalibuRacing Junkie
Mar 29, 2008
5,121
0
0
LONG ISALND NEW YORK
THANKS FOR THE INFO VERY HELPFUL


PONTIACMAN3

Frequent Racer
Feb 14, 2007
459
0
0
Manville, NJ
interesting, is mounting coil over springs a common thing in the stock perches and then puttin an adjustable shock in the stock location????


racecar77

Pro Stocker
Aug 11, 2007
2,438
0
0
Crete,IL
PONTIACMAN3 said:
interesting, is mounting coil over springs a common thing in the stock perches and then puttin an adjustable shock in the stock location????
Some class rules require stock suspension mounting points. Lee


84MonteCarla

Weekend Racer
Nov 19, 2009
88
0
0
Cleveland, OH 44113
I'm also interested if anyone is running tailpipes with an ARB. Or is this counterproductive because wheelies would just crush your tails.

I'm currently working on the frame notch and haven't figured out a configuration that will let me run 3" OTA pypes with the ARB.

Pics would be greatly appreciated.


PONTIACMAN3

Frequent Racer
Feb 14, 2007
459
0
0
Manville, NJ
Hey guys Im having trouble fitting the trz bar with my coilover crossbar, any thoughts, the anti roll crossbar comes real close to the upper arms but it seems from the piks that alot are real close.....guess the control arms do not move up that much once the springs are set, any thoughts out there, thanks


Supe

MalibuRacing Junkie
May 21, 2003
15,116
0
0
Charlotte, NC
If your car is set up properly, your control arms won't move up at all short of running over a bump, etc. During the run, they will drop slightly as the rear end lifts the frame and gives the back end its separation.


Drfade27

Dragway Regular
Nov 1, 2008
1,142
0
0
Hammond, Chicago
Is it good to take your links loose while street driving?
