BUILD YOUR OWN ELECTRIC FAN HARNESS

TURNA

Moderator
Jul 6, 2003
6,031
0
36
Socialist NY
All wires are 10 gauge except the wire to the TEMP switch. Those are 14

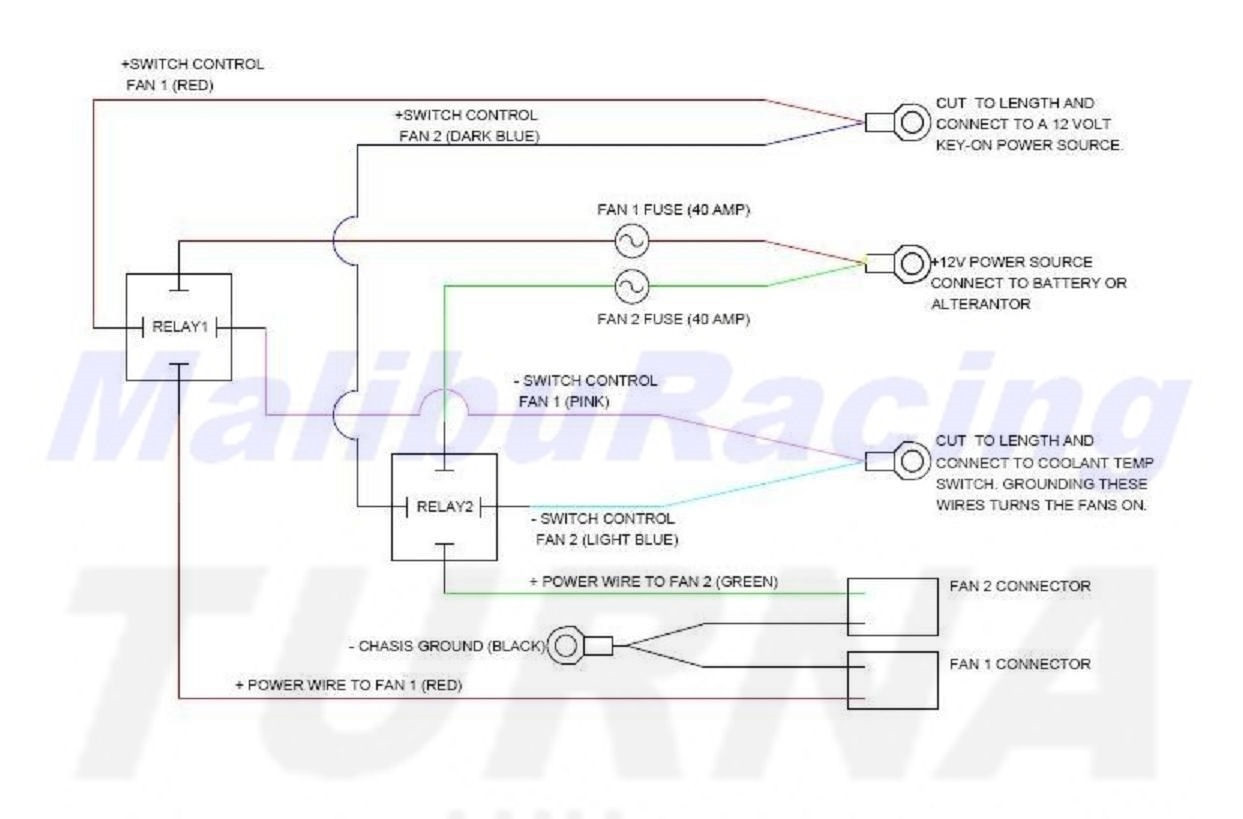

DUAL ELECTRIC FANS









SINGLE ELECTRIC FAN






RatMalibu's TEMP SWITCH OVERRIDE










RatMalibu

Pro Stocker
May 21, 2003
2,225
0
0
Rolla, Mo.
www.fidnet.com
just to add...if for some reason you want to manually turn the fan on you need a 2 pole switch (on/off) run one pole to the "- switch control" wire in your diagrams and run the other side to a good ground. I have mine set up that way, it's nice if you want it to keep cooling after it reaches the normal cut off temp of the temp switch (sitting in the staging lanes for example)


DOUG213XRJ

MalibuRacing Junkie
Sep 18, 2006
4,661
1
38
West, MI
Question.s 1, What size relay and type. 2, If a on/off switch is used what amp should the switch be. Thanks Alot for the Diagrams. Doug


RatMalibu

Pro Stocker
May 21, 2003
2,225
0
0
Rolla, Mo.
www.fidnet.com
Before I redid the wiring last summer I was running a pair of 30 amp relays and never had any problems. Currently I have a pair of 35 amp relays for the fans. Any quality relay should work.....i.e. not the kind you typically find at Wal-Mart...go to the junkyard and start looking under hoods a lot of the 90's vehicles had weatherproof singles under the hood that work great. As far as the switch it can be anything since it's not on the "power" side of the relay it's just used as a ground to trigger the relay in place of the temp switch so it really won't see a load at all.


Malibu 361

Dragway Regular
Jan 11, 2007
1,286
0
0
Queens,NY
Thanks guys.! I was actually in the middle of re-wiring my car and this was a project I wanted done for this season...!


LS6 Tommy

MalibuRacing Junkie
May 15, 2004
15,848
0
36
North Jersey
What, no love for the guys with A/C? :lol:

Tommy


mc1984ss

Frequent Racer
Apr 19, 2004
534
0
16
Wisconsin
I realize this is an old thread but does anyone have e the pictures from this original post? They are no longer visable thanks to photo bucket. Also anyone have any pictures of where they mounted the relays??? Thanks in advance!
