Narrowing the bumpers

Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY

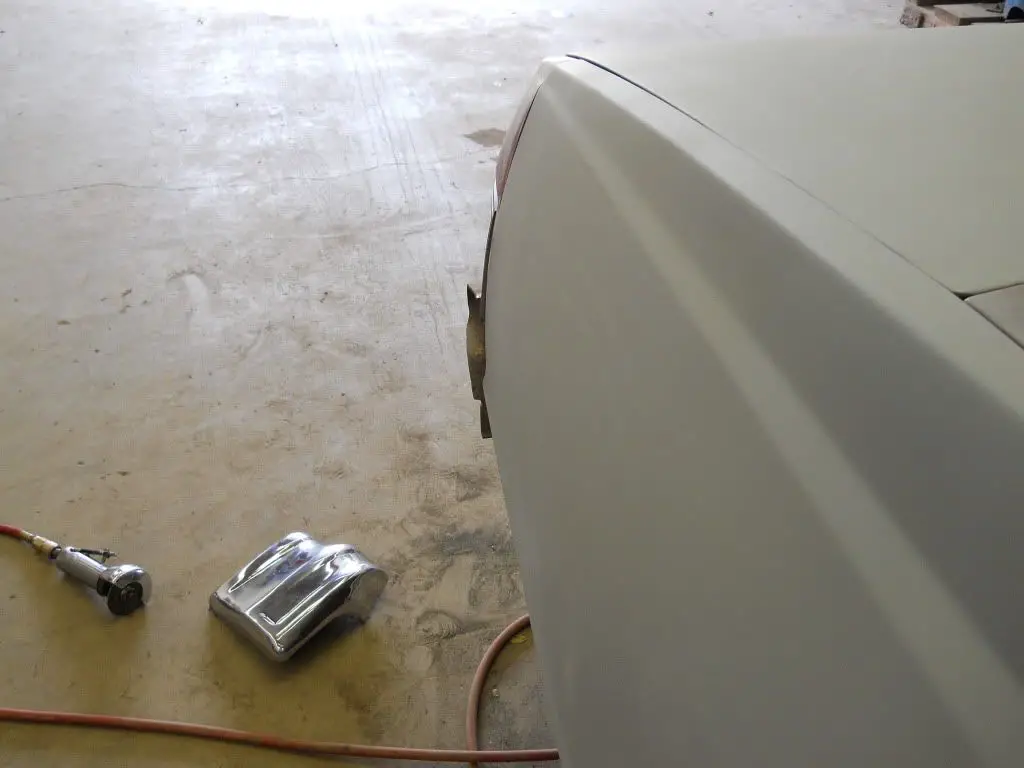

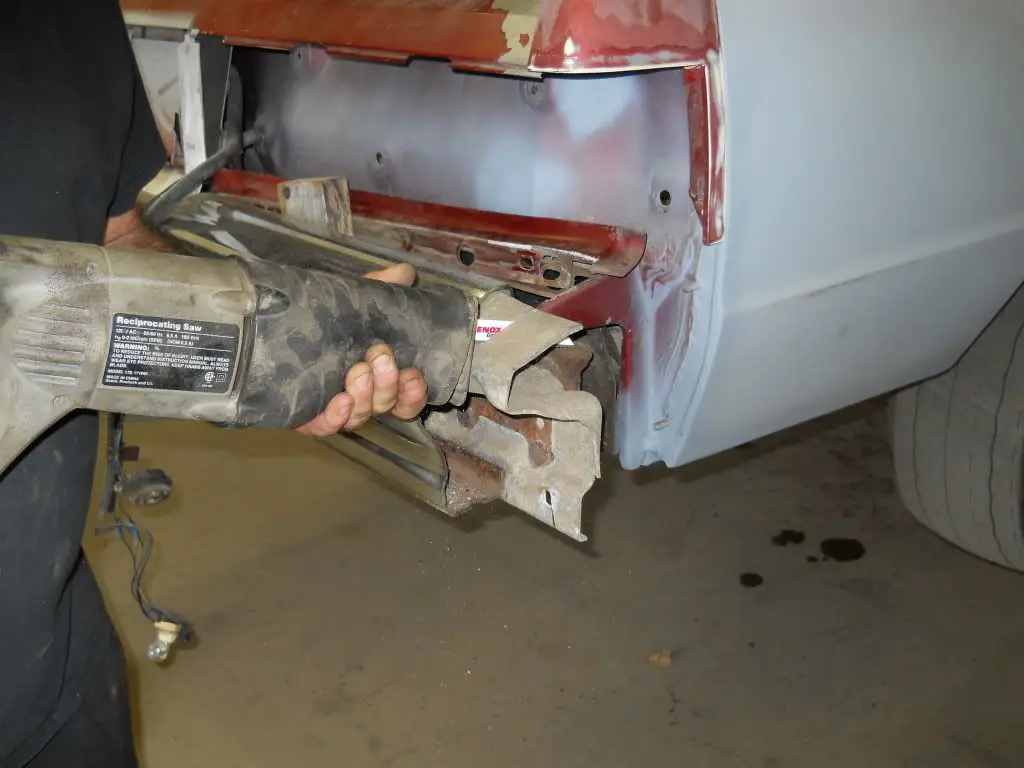

decided to narrow the bumpers before painting the car. Still a ways from paint but getting there,

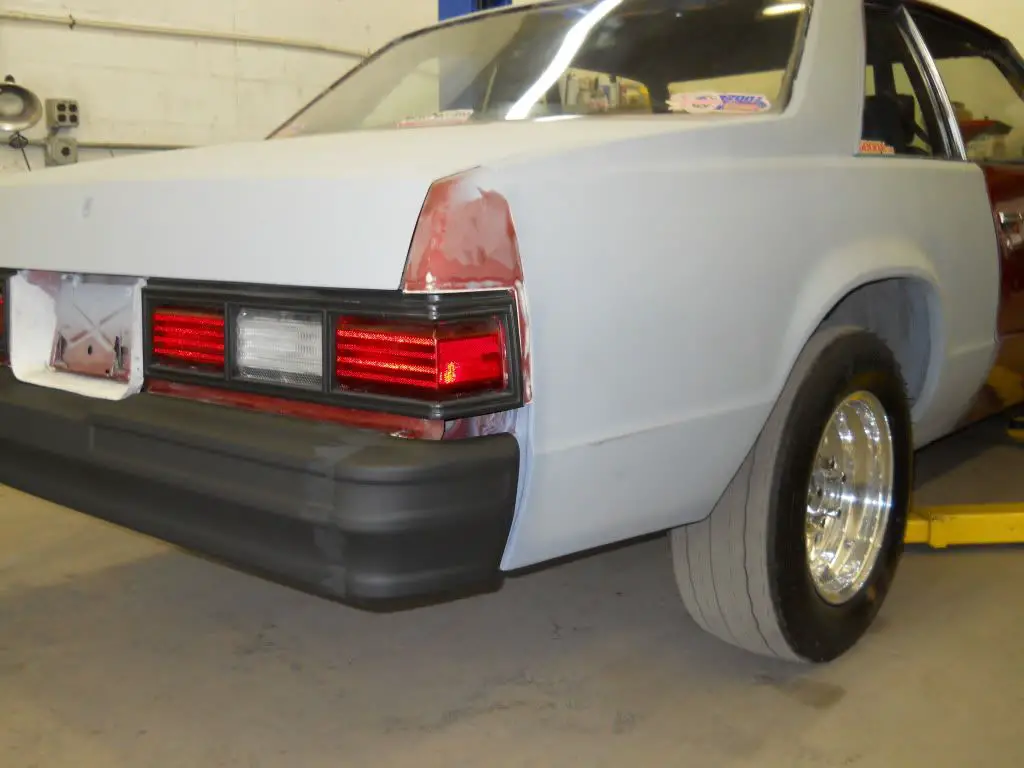

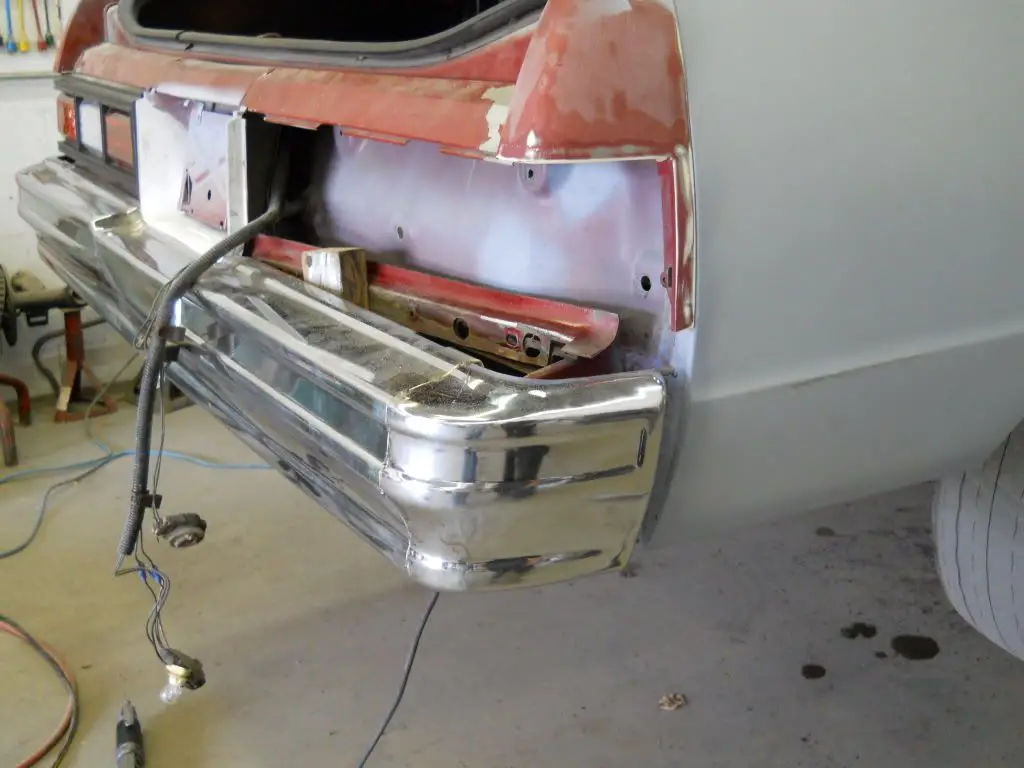

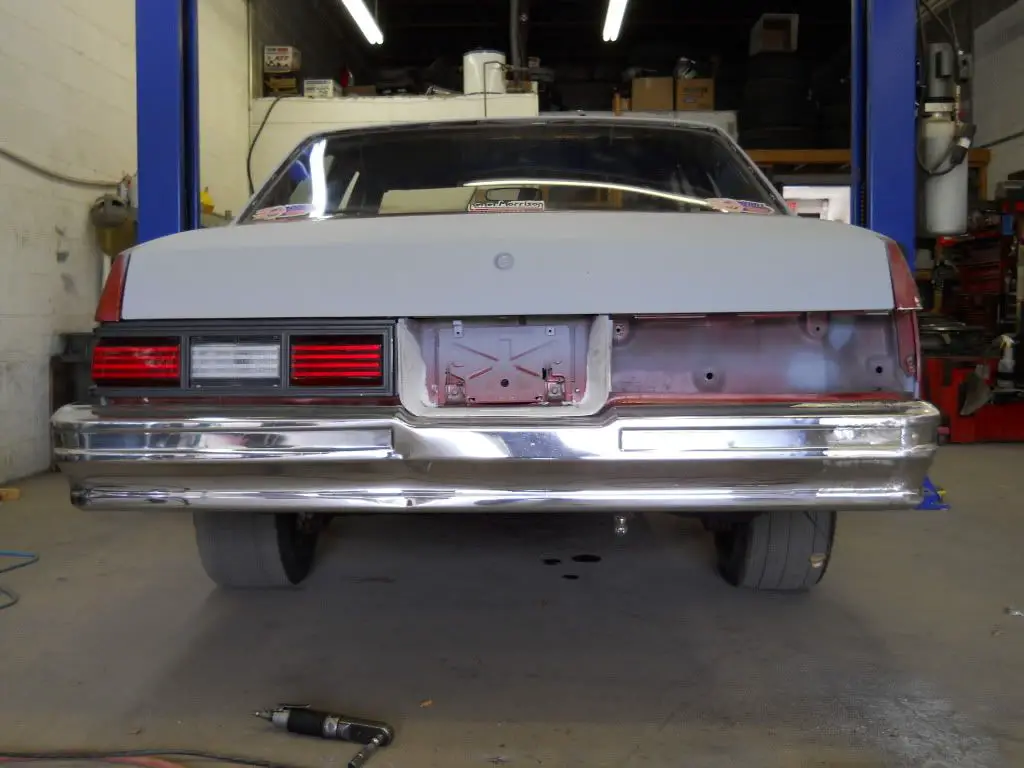

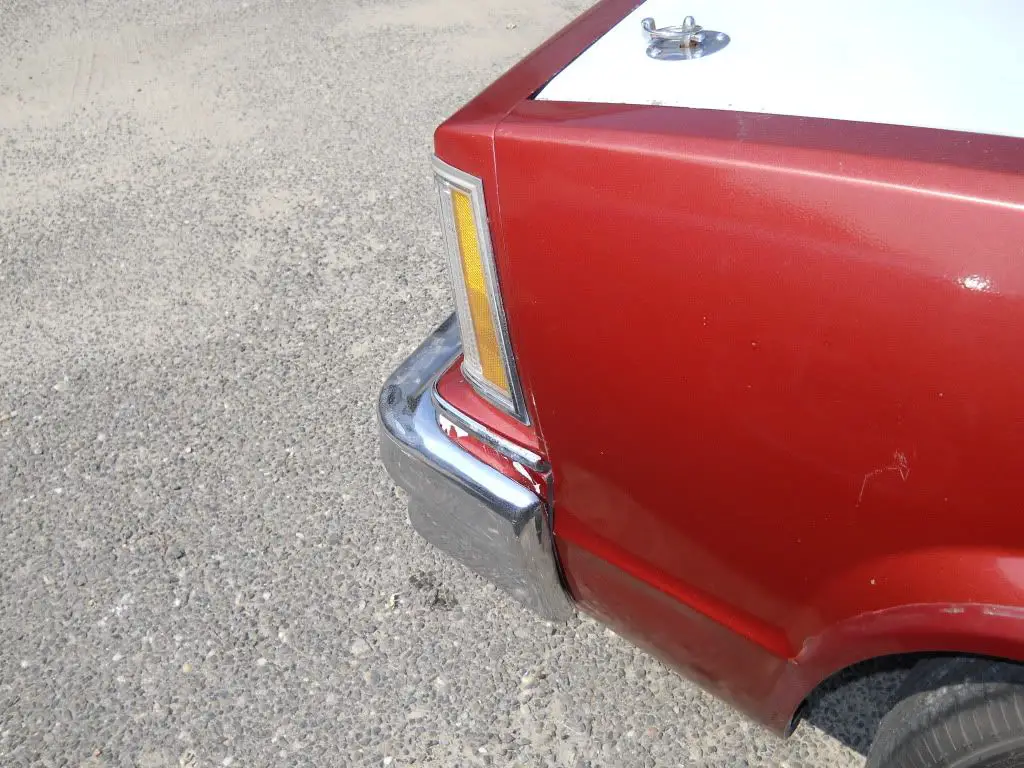

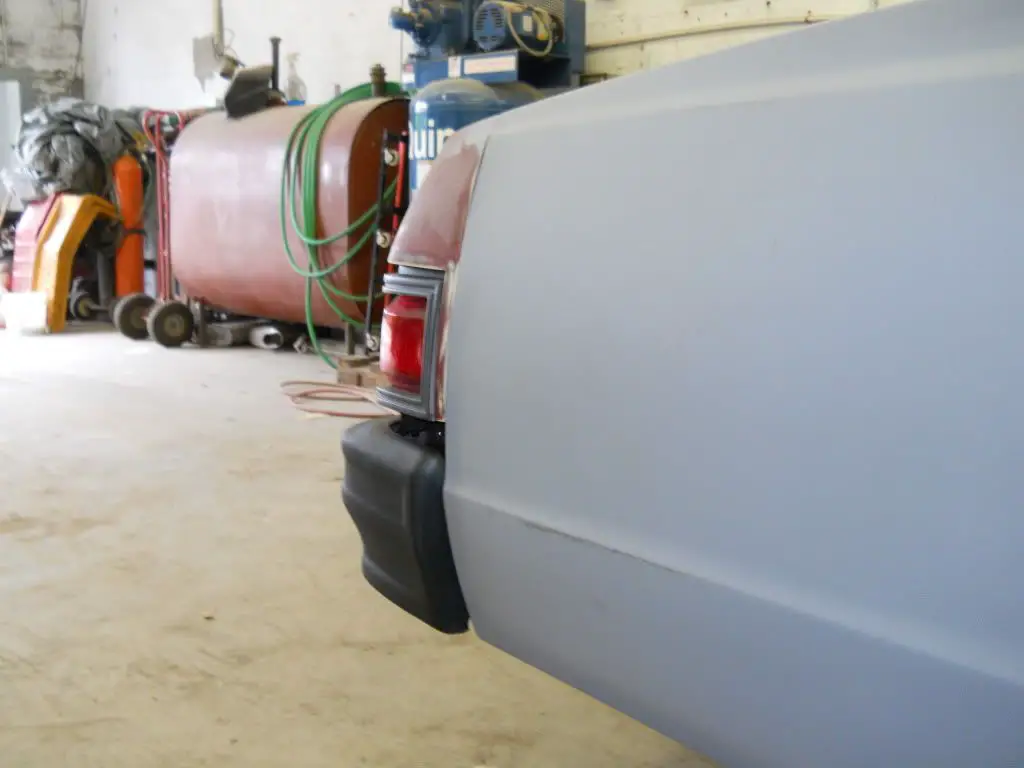

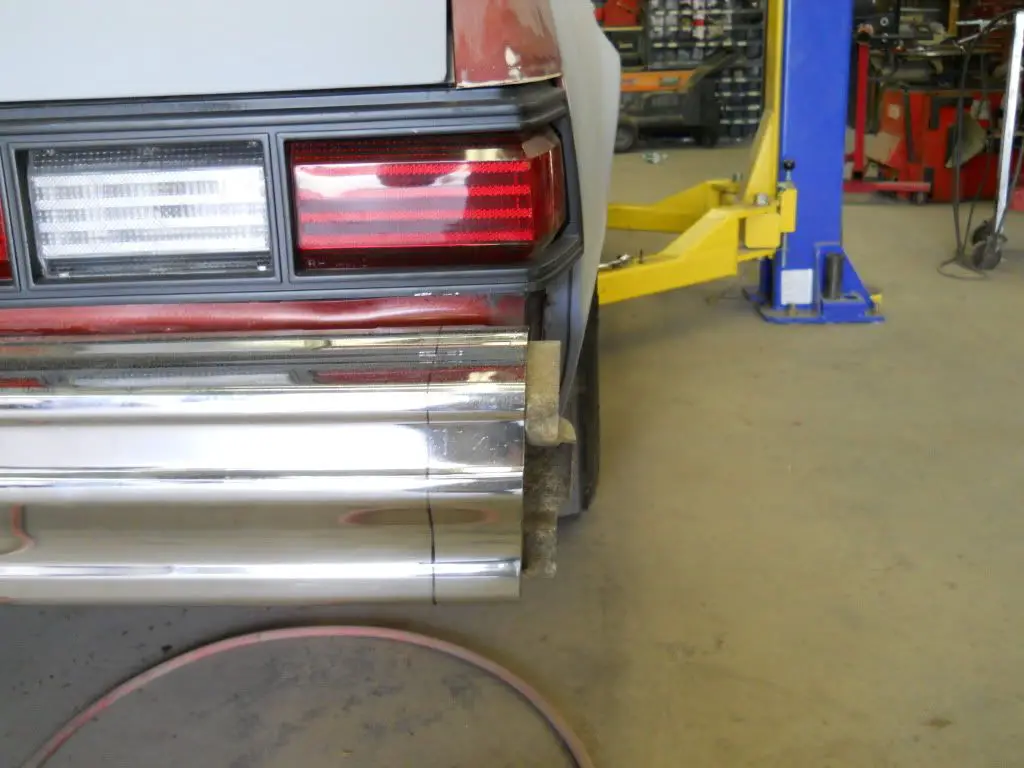

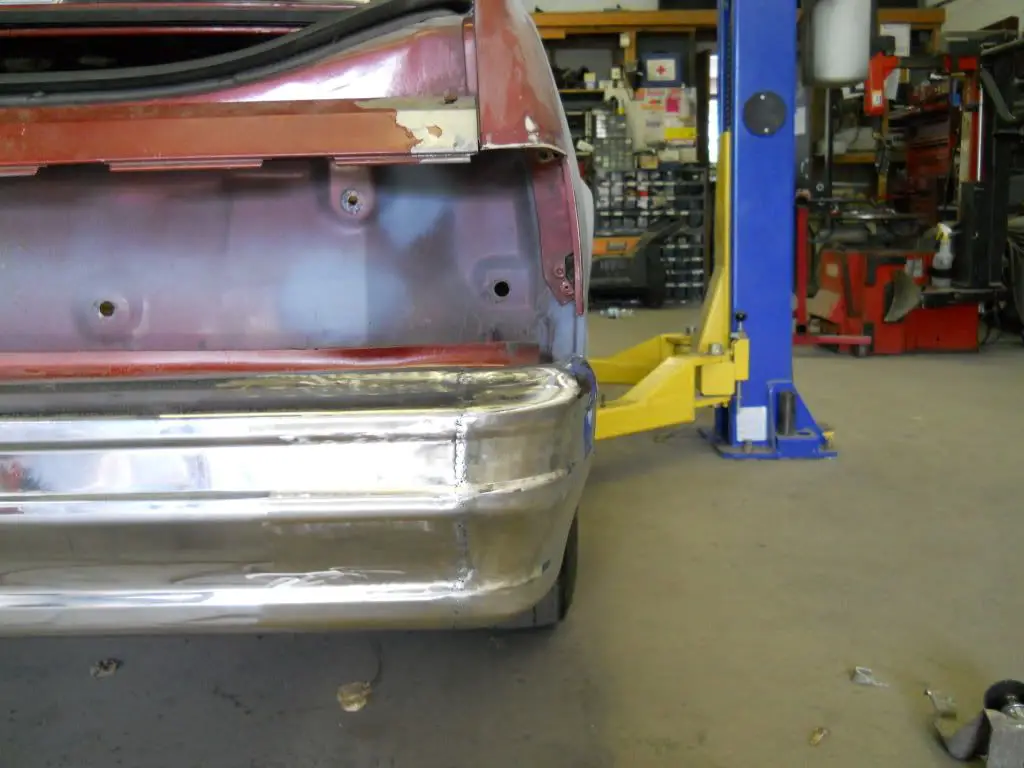

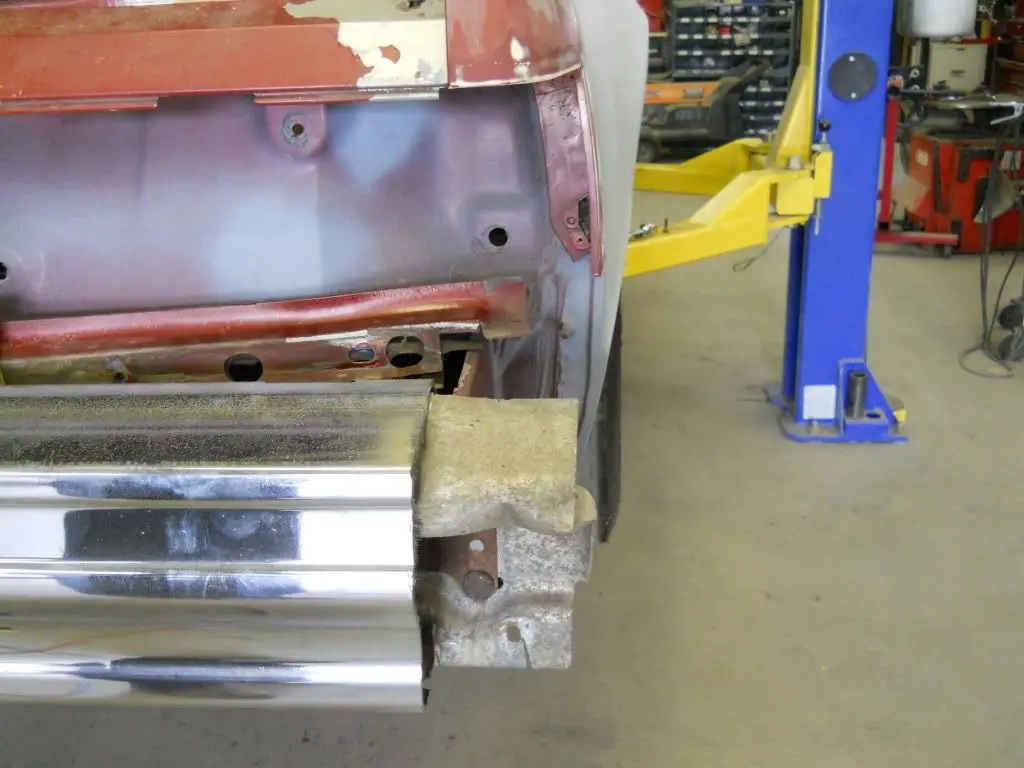

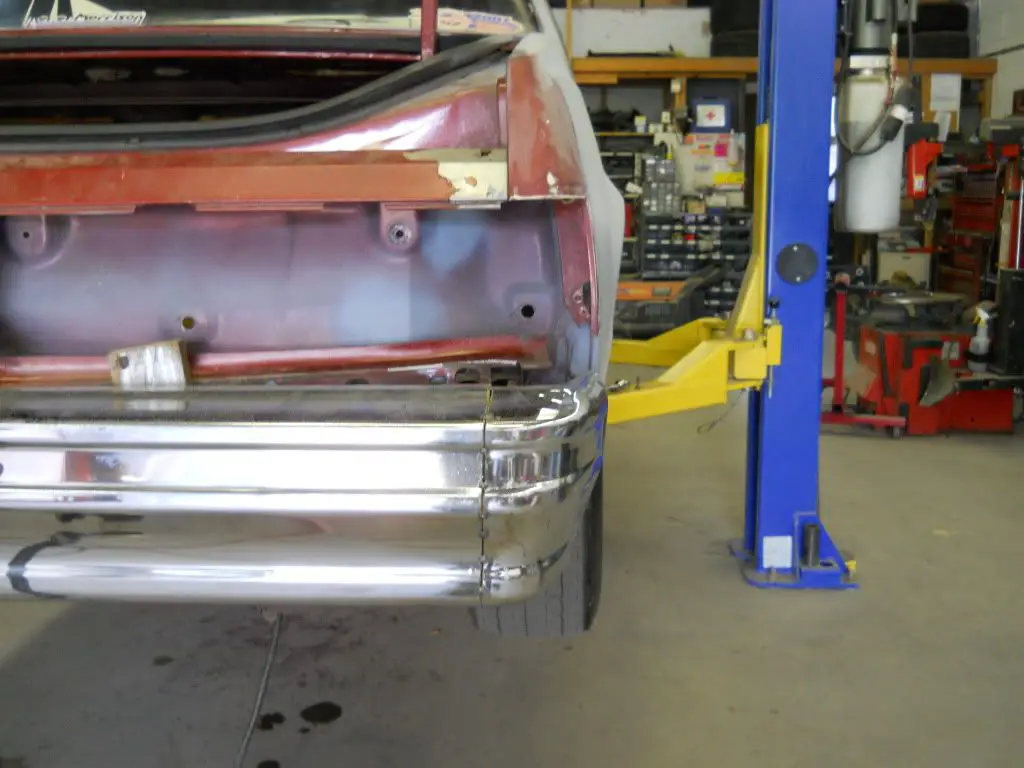

left side stock, right side narrowed::





Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY

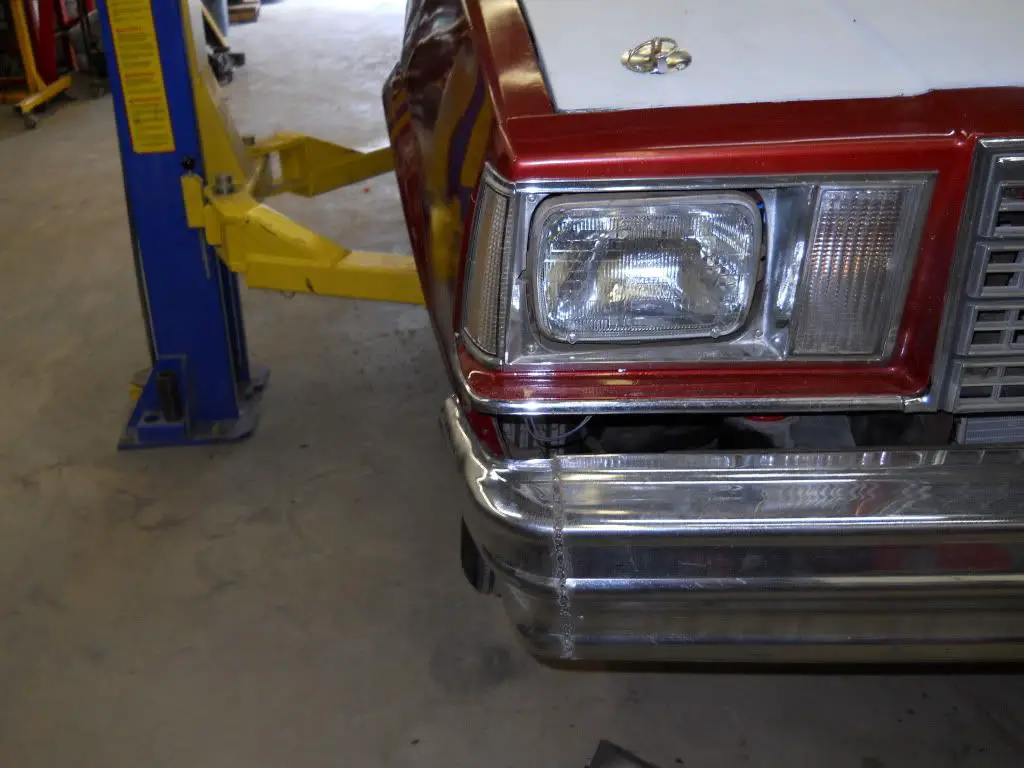

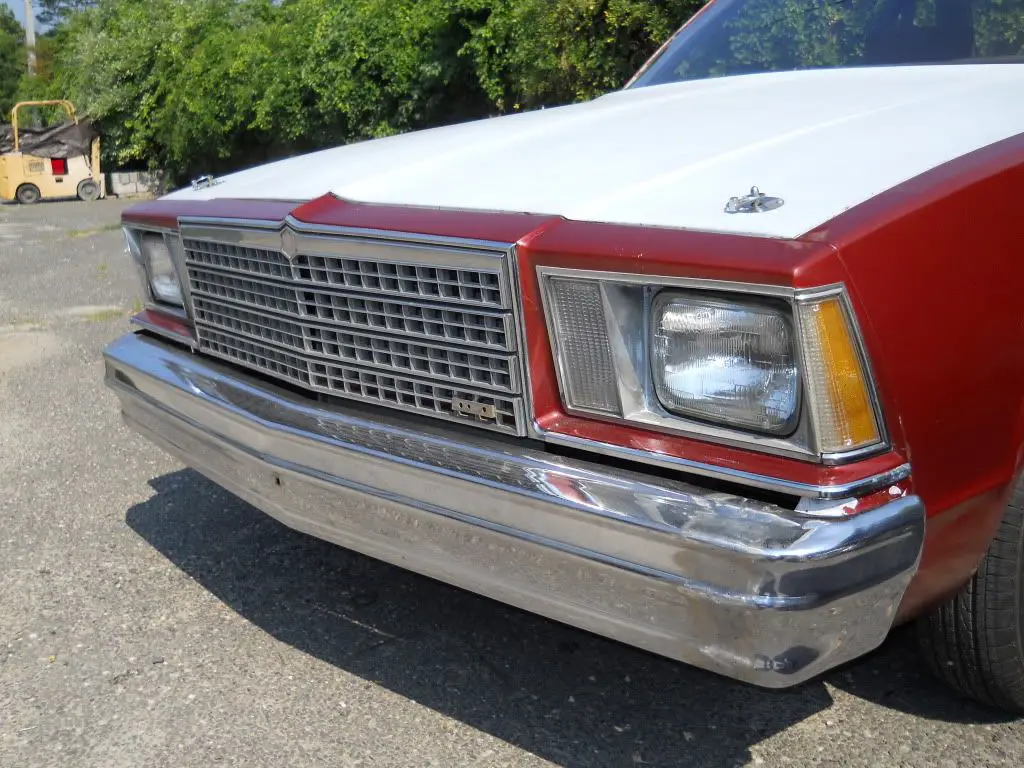

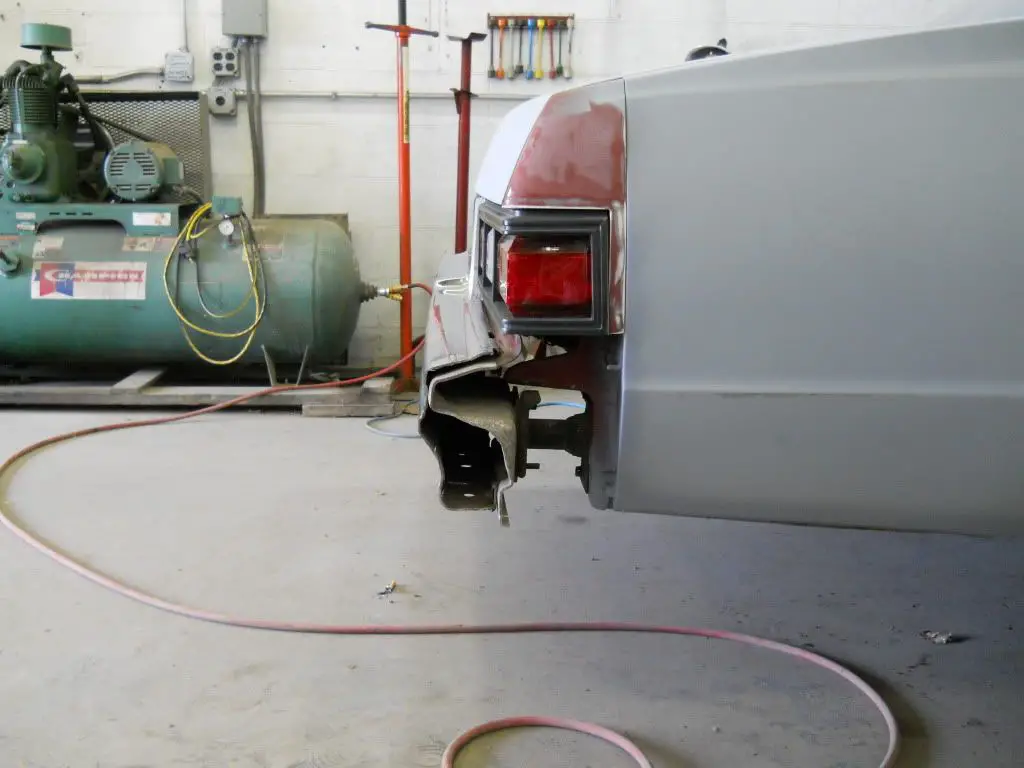

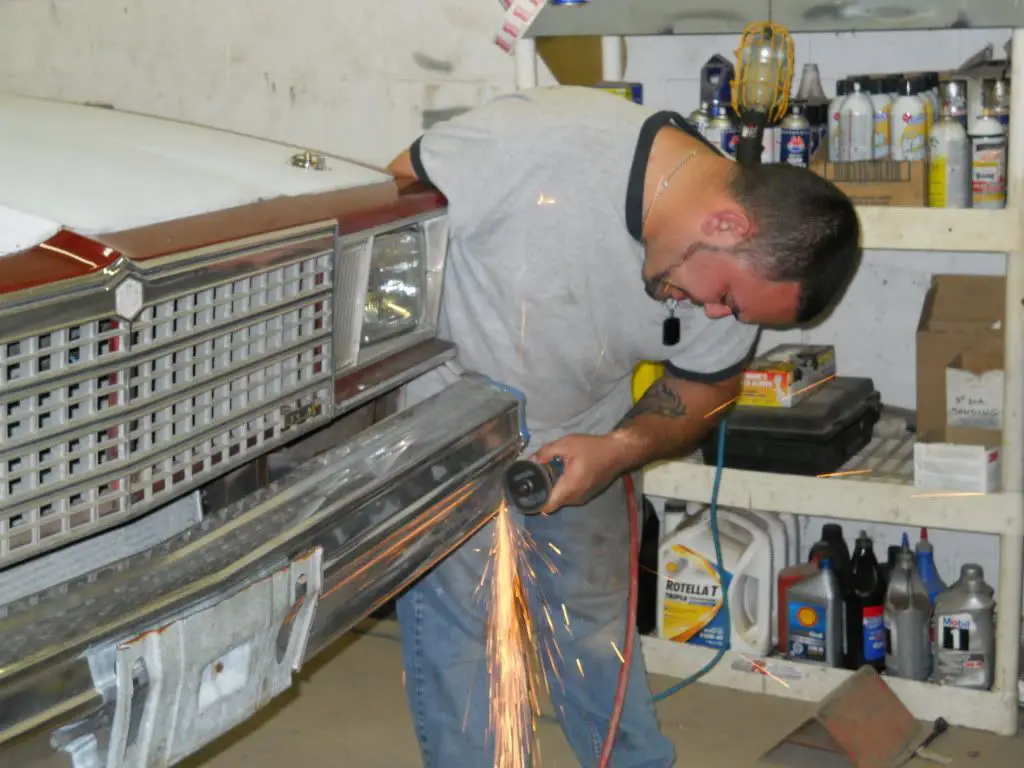

Now the front::

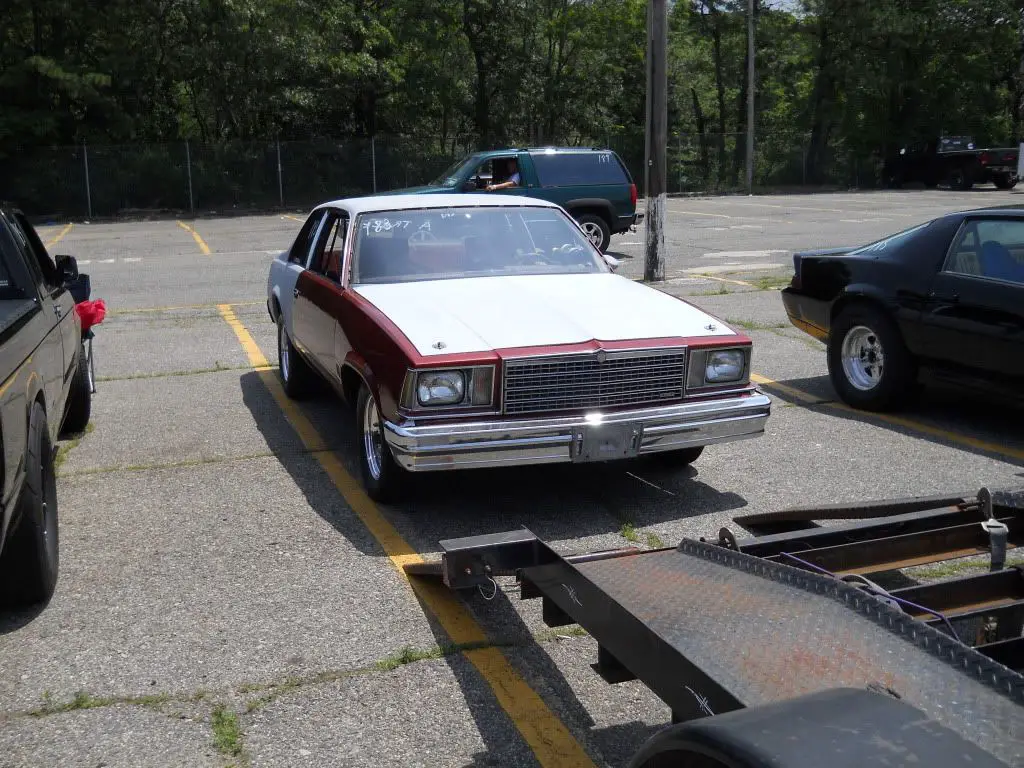

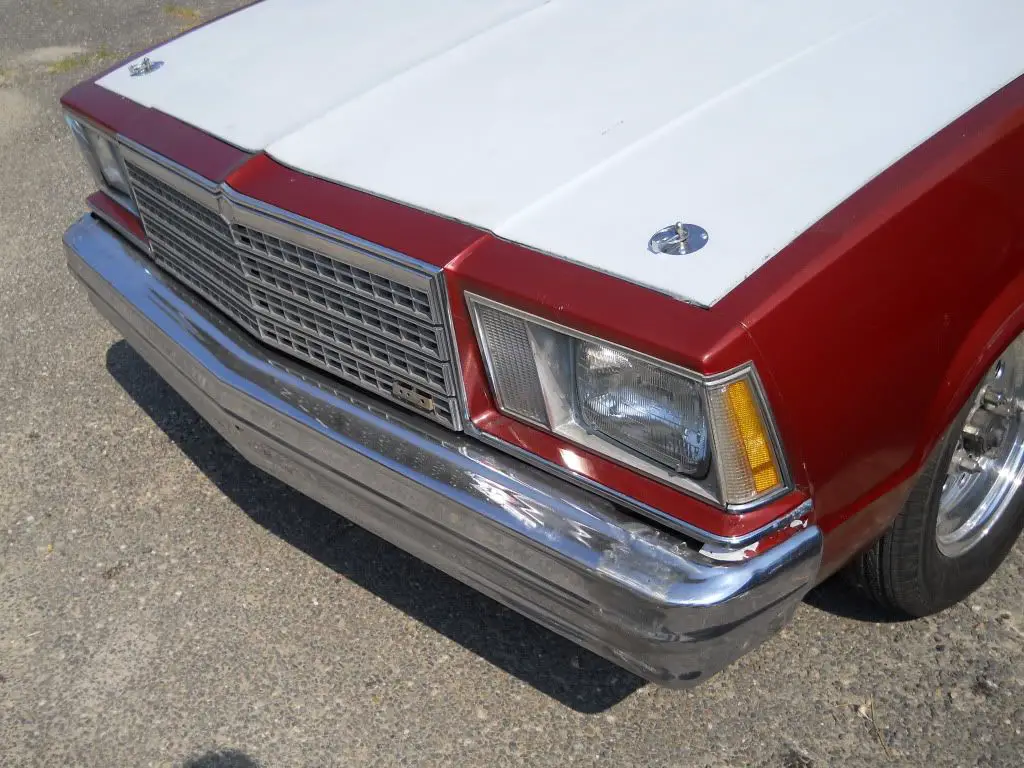

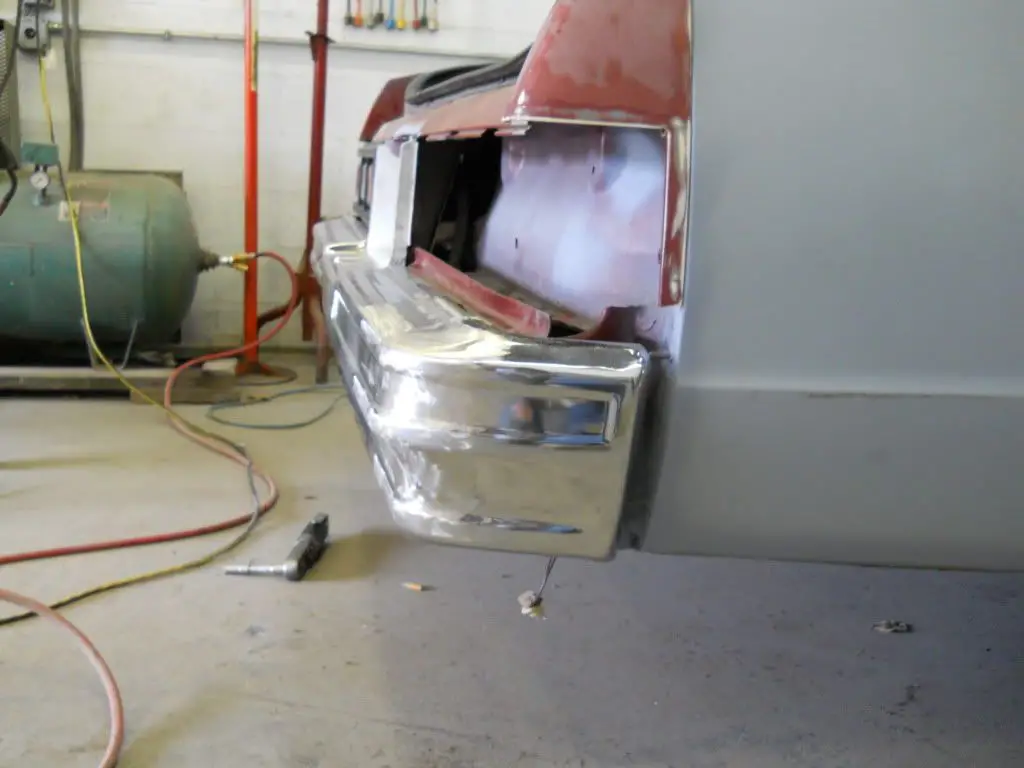

stock:










we also moved the front bumper back one inch

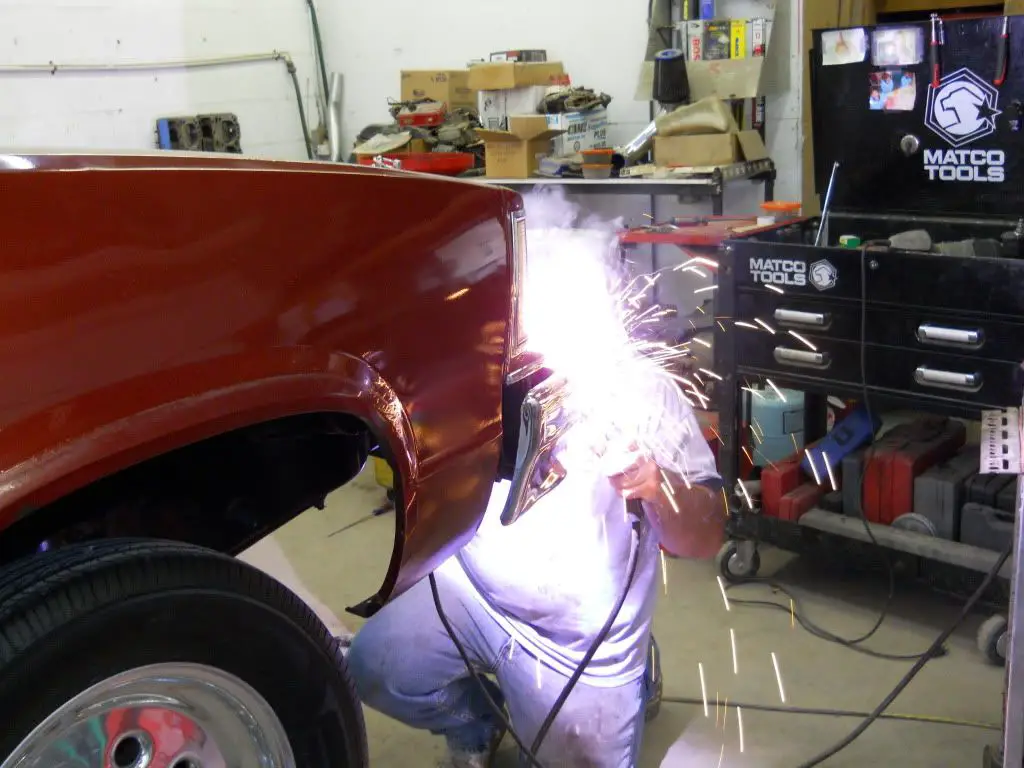

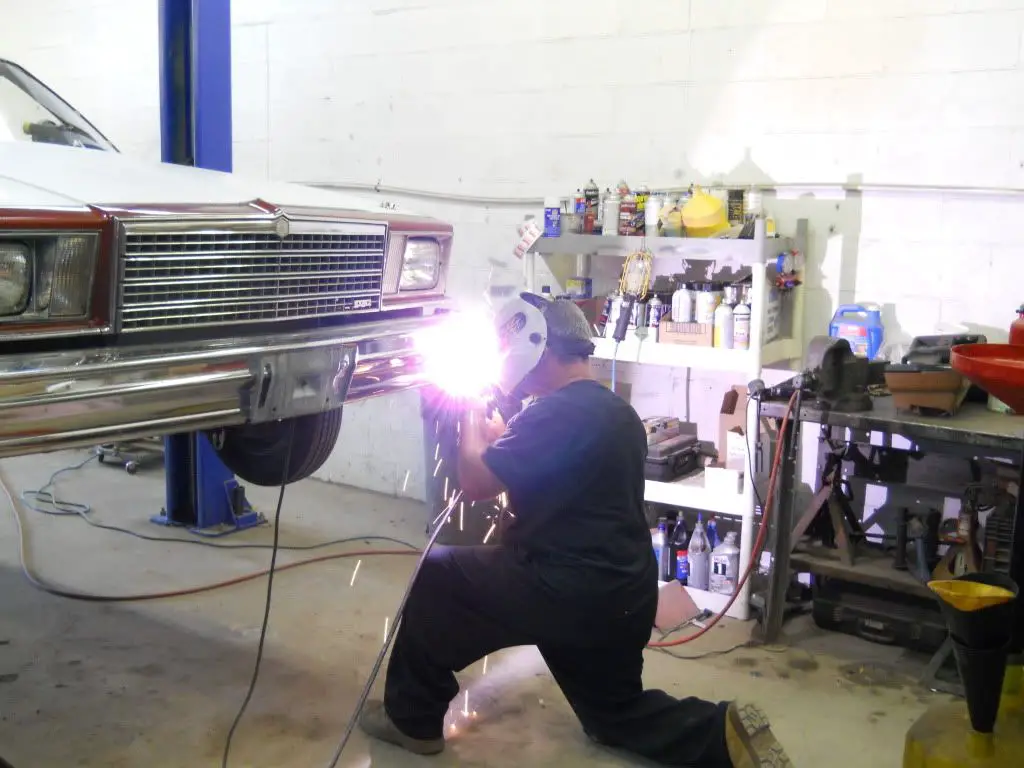

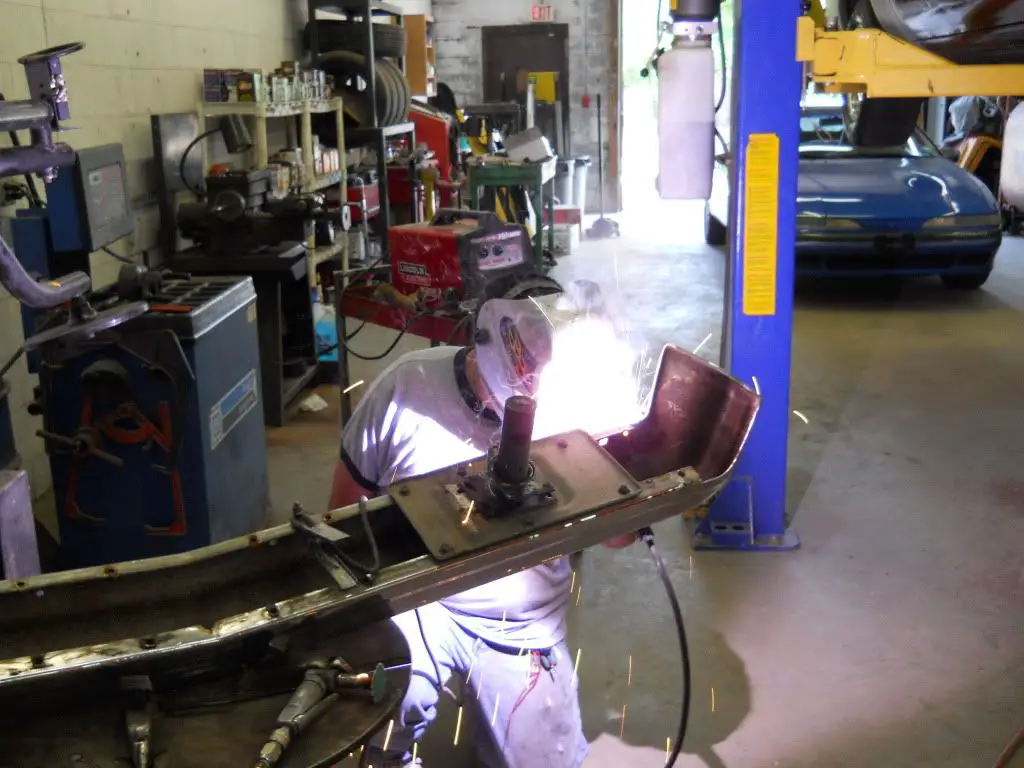

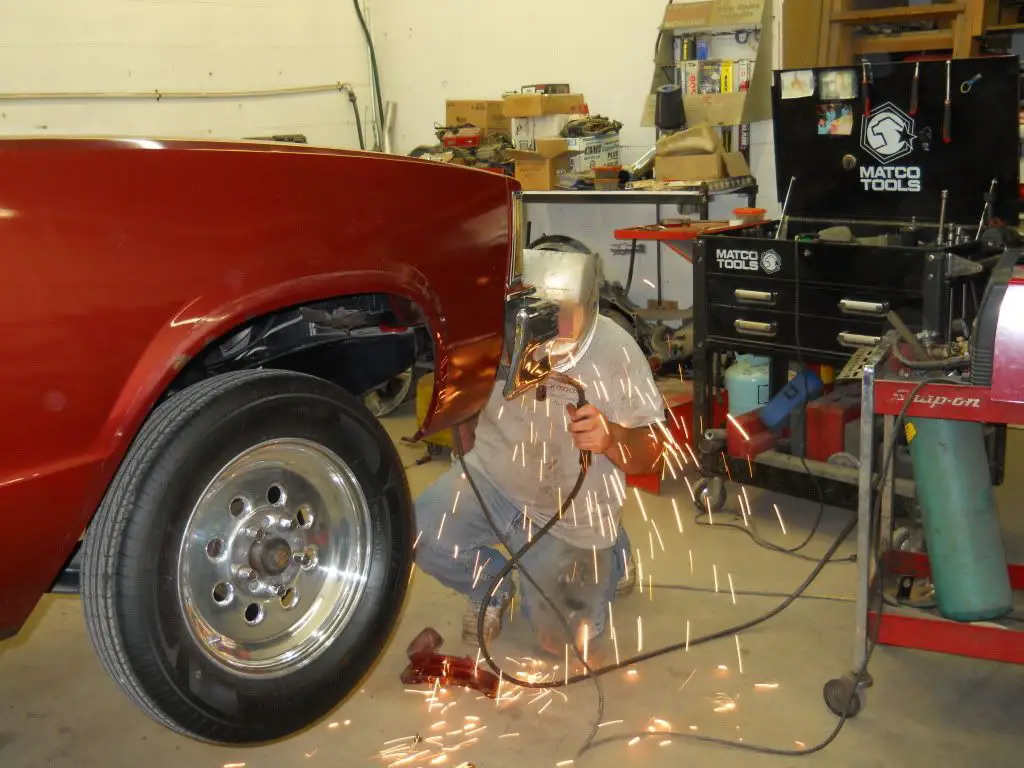

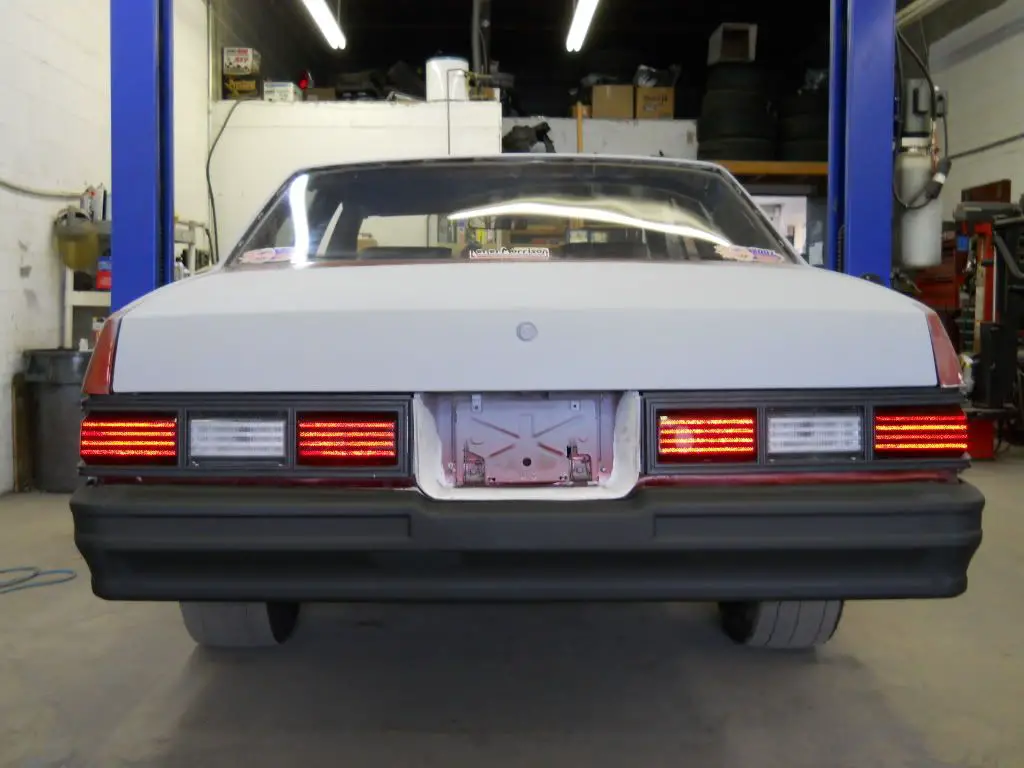

then just finish welding everything up::


80malibucoup

Frequent Racer
Feb 8, 2011
634
0
0
Jonesboro,Ga
I was thinking of doing the same thing,but i just did know how much to take out. Can you give me some specs on how much you took out? How did you bring the front bumper in 1 inch? I was thinking 1 1/2 inch on both sides,but wasn't sure.


nillabu

Dragway Regular
May 16, 2008
778
0
16
St. Cloud, Minnesota
Great work and looks great =D> I pretty much did the same thing with my 80. I only took 1 1/8" from each end and also moved the bumpers in closer by 1/2". Had to fab new rear mounts as the alum. was too far gone. Trimmd the end and horizontal fillers back to fit also. Rechroming cost me a small fortune :-& Plan on paint or chrome? Nice job!!!

Steve







[/quote]


Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY
skayser2 said:
Great work and looks great =D> I pretty much did the same thing with my 80. I only took 1 1/8" from each end and also moved the bumpers in closer by 1/2". Had to fab new rear mounts as the alum. was too far gone. Trimmd the end and horizontal fillers back to fit also. Rechroming cost me a small fortune :-& Plan on paint or chrome? Nice job!!!

Steve
[/quote]


We are planning on painting them.


nillabu

Dragway Regular
May 16, 2008
778
0
16
St. Cloud, Minnesota
That'll look great! Nice work. Will wait for the pictures when all's done.

Steve


Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY
We still have tons of body work to do on the doors and the front end. Its getting done slowly but surely.


44-bu

Amateur Racer
Jun 26, 2011
117
0
0
Harbor Beach, MI
That look's sweet. I like that look. really clean lines. nice work also, like all the pic's.


80malibucoup

Frequent Racer
Feb 8, 2011
634
0
0
Jonesboro,Ga
skayser2 said:
Great work and looks great =D> I pretty much did the same thing with my 80. I only took 1 1/8" from each end and also moved the bumpers in closer by 1/2". Had to fab new rear mounts as the alum. was too far gone. Trimmd the end and horizontal fillers back to fit also. Rechroming cost me a small fortune :-& Plan on paint or chrome? Nice job!!!

Steve







[/quote]

Do you you have some pictures of the full front and rear of your car?? I would really like to get a better idea of how mine would turn out. You said you only took out 1 1/8th of material. How far in did you go and the support behind the bumper how did you get it to line up to the mounting holes?


Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY
80malibucoup said:
Do you you have some pictures of the full front and rear of your car?? I would really like to get a better idea of how mine would turn out. You said you only took out 1 1/8th of material. How far in did you go and the support behind the bumper how did you get it to line up to the mounting holes?
Due to the age of these cars and metal fatigue over the years, I wouldn't go by other peoples measurements. I took a different amount out of each side to get both the same. Best way to do it is mount the bumper on the car, measure how much you want to take out from each side. then cut.

as per the mounting holes, if you start your cut right where the corner is (where it first straightens out), you dont go into the mounting holes at all. Also, just a FYI when you narrow the front bumper, you will have to set the bumper back at least a 1/2 inch to get the sides back where they belong. due to the 'v' shape of the front bumper, when you take 1-2 inches out of the bumper the sides move forward about a 1/2 inch.


nillabu

Dragway Regular
May 16, 2008
778
0
16
St. Cloud, Minnesota
"Due to the age of these cars and metal fatigue over the years, I wouldn't go by other peoples measurements. I took a different amount out of each side to get both the same. Best way to do it is mount the bumper on the car, measure how much you want to take out from each side. then cut.

as per the mounting holes, if you start your cut right where the corner is (where it first straightens out), you dont go into the mounting holes at all. Also, just a FYI when you narrow the front bumper, you will have to set the bumper back at least a 1/2 inch to get the sides back where they belong. due to the 'v' shape of the front bumper, when you take 1-2 inches out of the bumper the sides move forward about a 1/2 inch"


Yep, exactly what Betcha618 said. Hate to highjack his thread cause he's doing it the right way. Did all my measurements with the full bumpers on. Did my cuts on a band saw though. As far as pushing mine in the 1/2", I ordered (from TNT) shorter mounts to replace the standard length shocks and bolted the fronts right up. The rear mount plates were too far gone so I fabbed (minus the 1/2") new ones from mild steel, and used the stock shocks. The proper angle is built into these plates.









Don't intend to high jack your thread Betcha618. I like your work and think it'll look great! Can't wait to see the final paint and assembly. I'll dissappear into the background after this.

Steve


Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY
No need to apologize. I posted this thread to show what i did and maybe give others ideas and motivation to do theirs. I am in no way an expert, this was my first time. Learning as i go. I hope any one else with experience doing this posts what they have done too. Maybe someone else thought of something we didn't.


80malibucoup

Frequent Racer
Feb 8, 2011
634
0
0
Jonesboro,Ga
I really apriciate both of you guys helping me out. I've been wanting to do this for 7yrs now, but didn't know where to start. My neighbor and I might get started next week,after I find somemore bumpers just in case.


nillabu

Dragway Regular
May 16, 2008
778
0
16
St. Cloud, Minnesota
Cool!! Enjoy this topic! IMO it's one of the best things that improves the looks of the gbody. Wish I'd had taken more pictures!

Had to build the rear plates from scratch cause the others were too far gone (most northern cars). Built the 1/2" "push" into them along with the correct shock mount angle. Another memeber here may begin building these from alum.




Steve


Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY
tHOSE Are really cool. hopefully someone starts making them for the people that arent as handy as you.


Longroof79

MalibuRacing Junkie
May 10, 2004
8,924
0
36
Gainesville, Fla.
Have you guys also collapsed (drilled) the energy absorbers and tack welded them in place for a closer fit?


Betcha618

Frequent Racer
Sep 19, 2007
327
0
0
coram, NY
i had to collapse the bumper shocks all the way because i was using a MonteCarlo frame and the front frame horns are like 4 inches longer then the Malibu. but on a stock malibu frame after you narrow the bumper you will have to collaps the front shocxks 1 - 1 1/2" to get the ends of the bumper in the right spot.
